GIGAIPC 산업용 메인보드 QBi-1135G7A

QBi-1135G7A

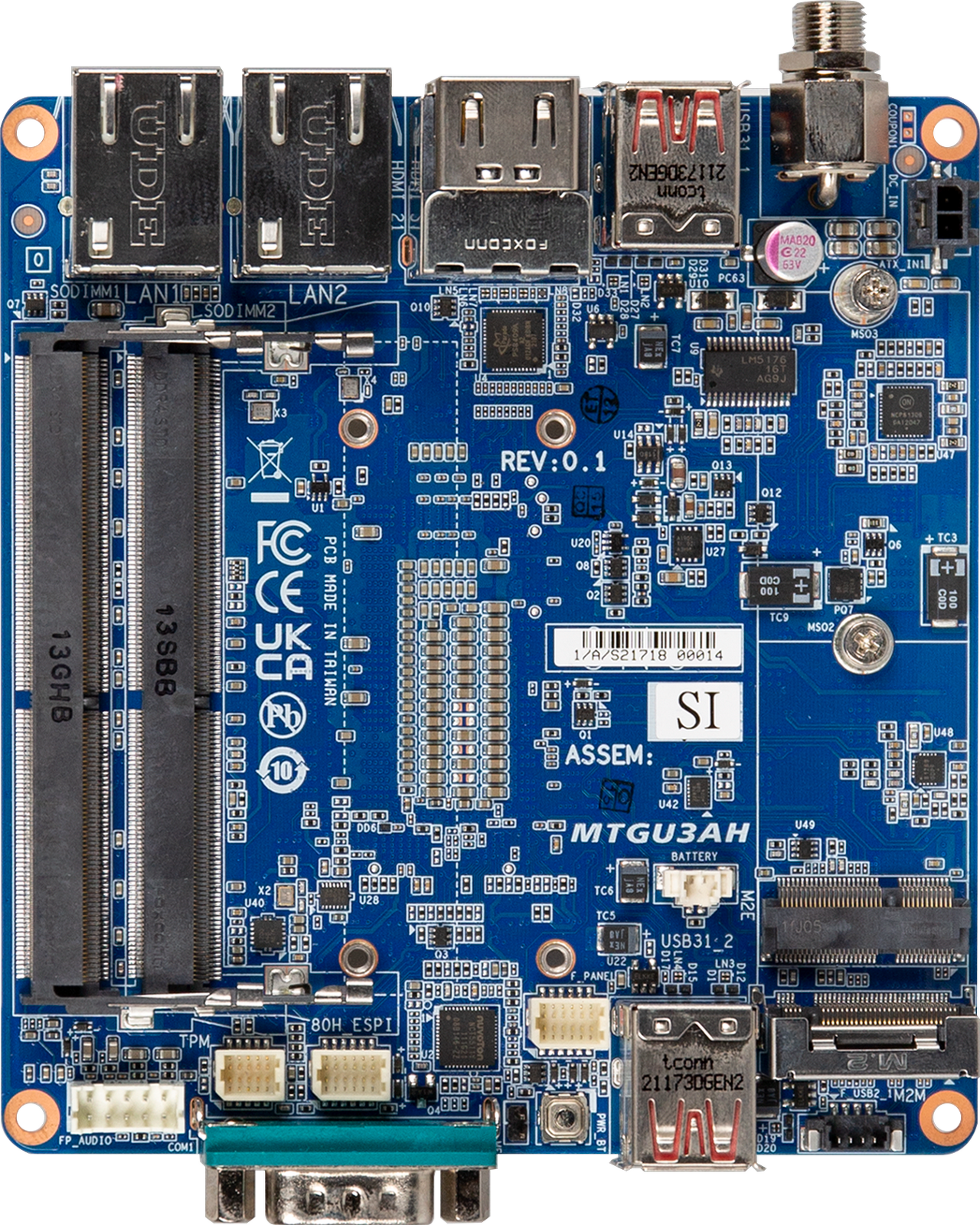

Embedded Compact Board with Intel® Core™ i5-1135G7 Processor, Dual Channel DDR4 memory, 1 x COM, 4 x USB, 2 x HDMI

​

GIGAIPC 산업용 메인보드 QBi-1135G7A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

​

---

Key Features

​

Embedded IPC Motherboard

Intel® Core™ i5-1135G7 Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

Ultra-Fast M.2 with PCIe Gen3 x4 interface

2 x HDMI ports

1 x RS-232/422/485 COM port

---

Specification

Form Factor	Embedded Compact Board 105W x 110D(mm)
CPU	Intel® Core™ i5-1135G7 Processor 10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz TDP 28W
Socket	1 x FCBGA1449
Memory	2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules
Ethernet	2 x GbE LAN Ports (Intel® I219V and Realtek® RTL8111HS)
Video	Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz ​ (2 independent display outputs)
Audio	Realtek® Audio Codec
Storage	—
Expansion Slots	1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key
Internal I/O	1 x 2-pin power connector 1 x CPU fan header 1 x Front panel header 1 x Front panel audio header 1 x USB 2.0 header
Front I/O	2 x USB 3.2 Gen 2x1 1 x Power button 1 x COM Port (RS-232/422/485)
Rear I/O	2 x HDMI 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 1 x Screw Type DC Jack (+9V~48VDC)
TPM	1 x TPM header
OS Compatibility	Windows 10 (x64)
Operating Properties	Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing)
Packing Content	Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs
Order Information	9MTGU5AHMR-SI (Box packing)
Optional Kit	TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R

​
