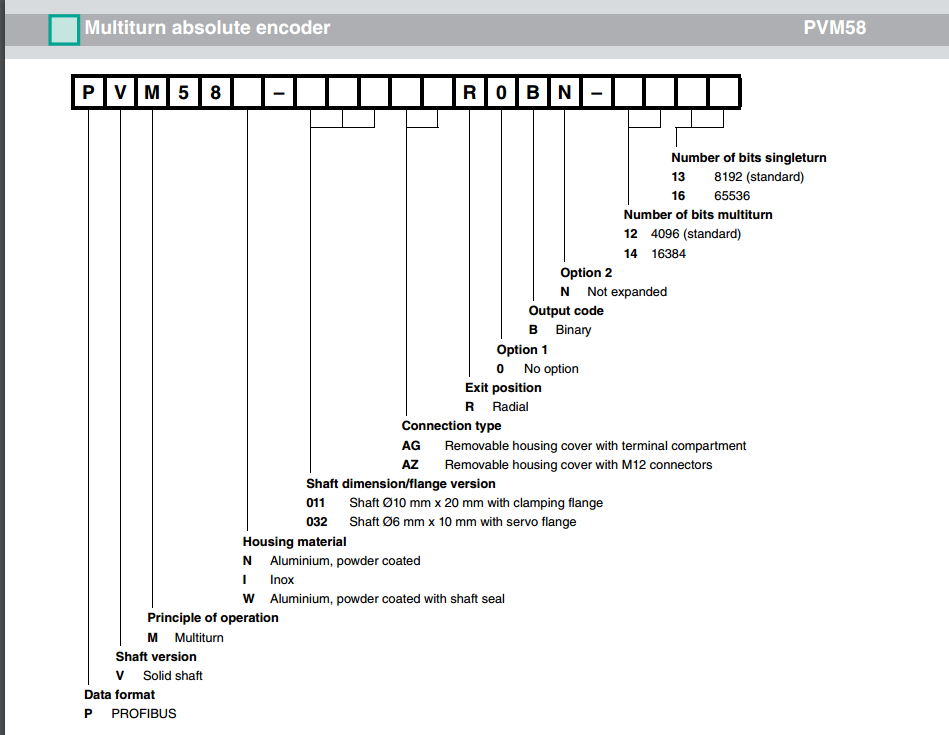

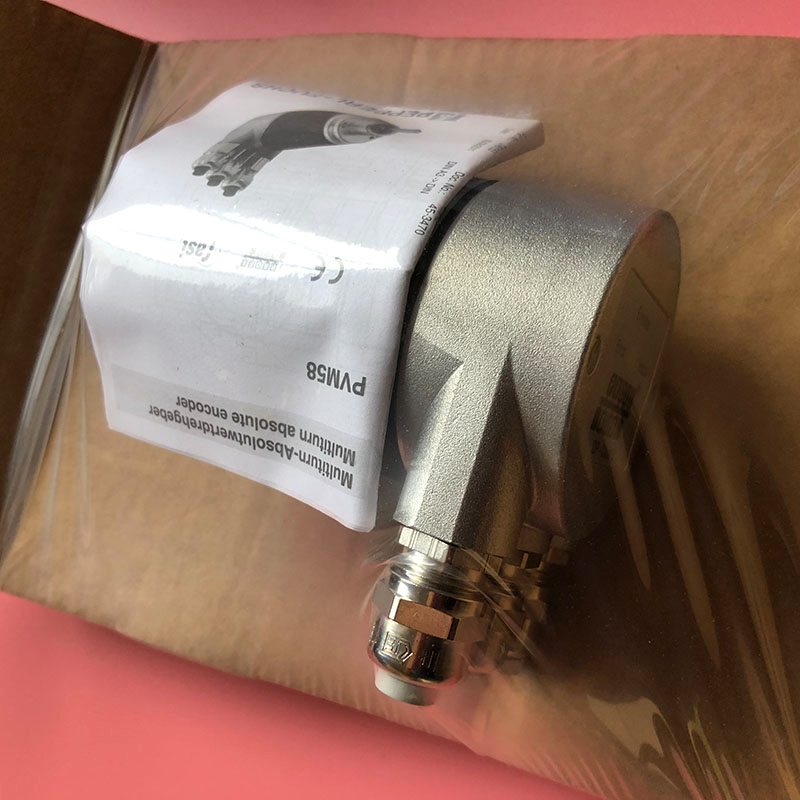

Multiturn absolute encoder PVM58N-011AGR0BN-1213

Model Number PVM58

Features

• Industrial standard housing Ø58 mm

• PROFIBUS interface

• 30 Bit multiturn

• Speed transfer

• Extended scaling functions

• Programmable limit switches

• Commissioning mode

• Servo or clamping flange

Manufacturer: P +F

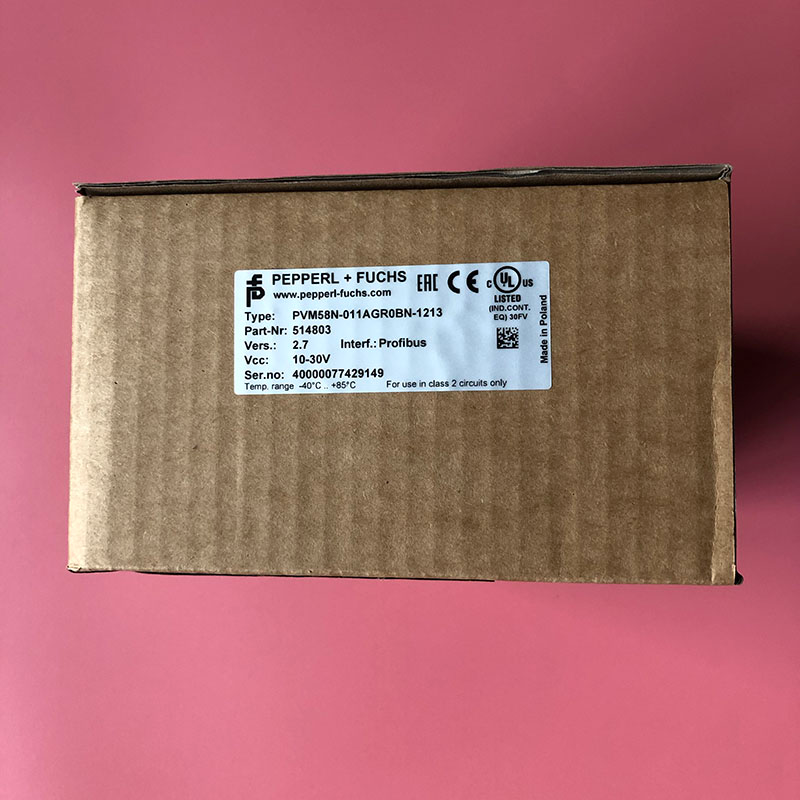

PVM58N-011AGR0BN-1213

Multiturn absolute encoder PVM58N-011AGR0BN-1213

Industrial standard housing 58 mm

PROFIBUS interface

30 Bit multiturn

Speed transfer

Extended scaling functions

Programmable limit switches

Commissioning mode

Servo or clamping flange

Detection type : photoelectric sampling

Device type : Multiturn absolute encoder

Functional safety related parameters

MTTFd : 70 a

Mission Time (TM) : 20 a

L10h : 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load

Diagnostic Coverage (DC) : 0 %

Electrical specifications

Operating voltage : 10 ... 30 V DC

No-load supply current : max. 230 mA at 10 V DC max. 100 mA at 24 V DC

Power consumption : max. 2.5 W

Time delay before availability : < 1000 ms

Linearity : ± 2 LSB at 16 Bit ± 1 LSB at 13 Bit ± 05 LSB at 12 Bit

Output code : binary code

Code course (counting direction) : programmable cw ascending (clockwise rotation code course ascending) cw descending (clockwise rotation code course descending)

Interface type : PROFIBUS

Single turn : up to 16 Bit

Multiturn : 14 Bit

Overall resolution : up to 30 Bit

Transfer rate : 0.0096 ... 12 MBit/s

Standard conformity : PNO profile 3.062 RS-485

Connection

Terminal compartment : in removable housing cover

Standard conformity

Degree of protection : DIN EN 60529 IP65 IP66 IP67 (with shaft seal)

Climatic testing : DIN EN 60068-2-30 no moisture condensation

Emitted interference : EN 61000-6-4:2007

Noise immunity : EN 61000-6-2:2005

Shock resistance : DIN EN 60068-2-27 100 g 6 ms

Vibration resistance : DIN EN 60068-2-6 20 g 10 ... 2000 Hz

Approvals and certificates

UL approval : cULus Listed General Purpose Class 2 Power Source

Ambient conditions

Operating temperature : -40 ... 85 °C (-40 ... 185 °F)

Storage temperature : -40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Material :

Combination 1 : housing: powder coated aluminum flange: aluminum shaft: stainless steel

Combination 2 (Inox) : housing: stainless steel flange: stainless steel shaft: stainless steel

Mass : approx. 600 g (combination 1) approx. 1200 g (combination 2)

Rotational speed : max. 12000 min -1

Moment of inertia : 30 gcm2

Starting torque : ≤ 3 Ncm (version without shaft seal)

Shaft load-Axial : 40 N

Shaft load-Radial : 110 N

​​
