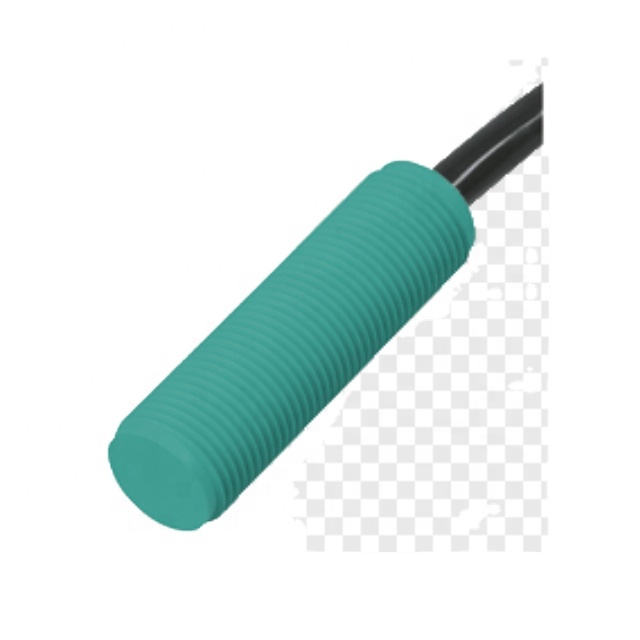

PEPPERL + FUCHS Inductive Sensor NBN4-12GK50-E2 088549 Proximity Switch
Specification
|
General specifications
|
|
|
Switching function
|
Normally open (NO)
|
|
Output type
|
PNP
|
|
Rated operating distance
|
4 mm
|
|
Installation
|
non-flush
|
|
Output polarity
|
DC
|
|
Assured operating distance
|
0 ... 3.24 mm
|
|
Reduction factor rAl
|
0.5
|
|
Reduction factor rCu
|
0.4
|
|
Reduction factor r304
|
0.8
|
|
Nominal ratings
|
|
|
Operating voltage
|
10 ... 30 V
|
|
Switching frequency
|
0 ... 1200 Hz
|
|
Reverse polarity protection
|
reverse polarity protected
|
|
Short-circuit protection
|
pulsing
|
|
Voltage drop
|
≤ 3 V
|
|
Operating current
|
0 ... 200 mA
|
|
Off-state current
|
0 ... 0.5 mA typ. 0.1 µA at 25 °C
|
|
No-load supply current
|
≤ 17 mA
|
|
Switching state indicator
|
LED, yellow
|
|
Ambient temperature
|
-25 ... 70 °C (-13 ... 158 °F)
|
|
Mechanical specifications
|
|
|
Connection type
|
cable PVC , 2 m
|
|
Core cross-section
|
0.14 mm2
|
|
Housing material
|
PBT
|
|
Sensing face
|
PBT
|
|
Housing diameter
|
12 mm
|
|
Degree of protection
|
IP68 / IP69K
|
