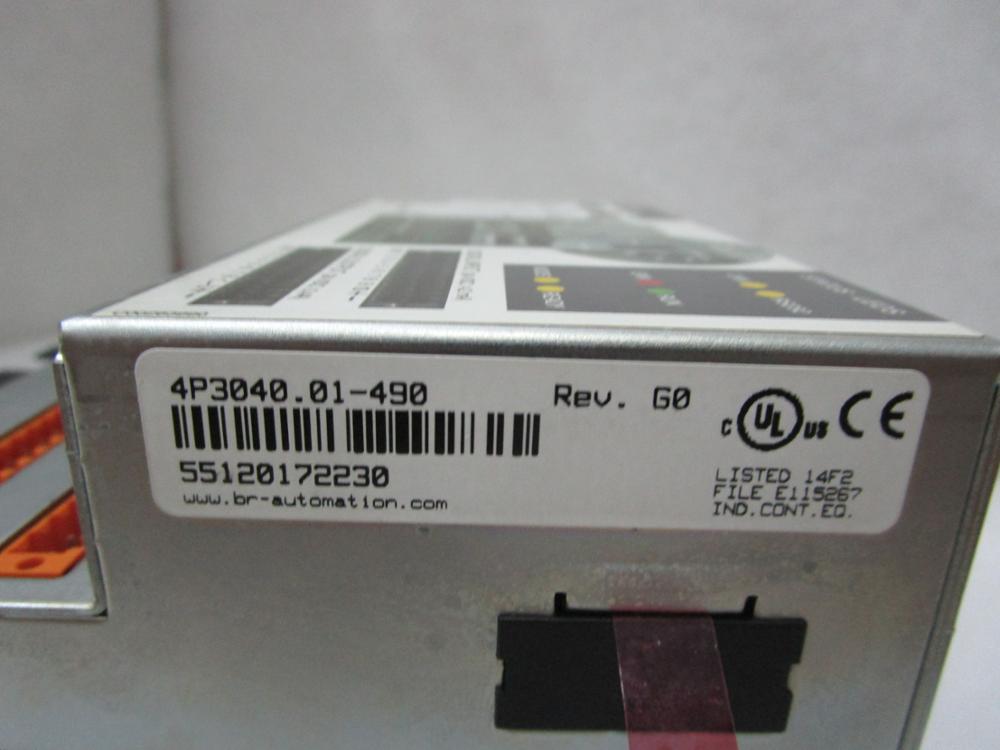

[수입판매] 4P3040.01-490 B&R Power Panel PP41 5.7 inch QVGA monochrome

4P3040.01-490 B&R Power Panel PP41 5.7 inch QVGA monochrome LC-Display, 8 softkeys and 32 function keys

Power Panel PP41 5.7 inch QVGA monochrome LC-Display, 8 softkeys and 32 function keys, system compatible 2003 CPU, 700 KB SRAM, 1,4 MB FlashPROM, 1 PCMCIA slot, 1 RS232 interface, 1 CAN interface: electrically isolated, network-capable, 6 slots for screw-in modules, 10 digital inputs 24 VDC, 8 digital outputs 24 VDC, 0.4 A, Protection IP65 (from front), 205x220 mm (WxH), 24 VDC, order TB712 terminal blocks separately.

​

Controller

Data buffering	Lithium battery 3 V / 950 mAh
Voltage monitoring	Internal supply monitored for overvoltage and undervoltage
Typical instruction cycle time	0.5 µs (average value at 70% bit and 30% analog processing)
Watchdog	Yes
Additional I/O processor	Handles I/O data points
Standard memory
System PROM	600 Kb FlashPROM
User PROM	1.4 MB FlashPROM
User RAM	700 kB SRAM

Display

Type	Monochrome LCD
Diagonal	5.7" (144 mm)
Resolution	QVGA, 320 x 240 pixels
Backlight
Brightness	150 cd/m²
Half-brightness time	50,000 h

Interfaces

Interface IF1
Type	RS232
Variant	9-pin DSUB plug
Electrical isolation	No
Max. baud rate	115.2 kbit/s

Digital inputs

Quantity	10
Nominal voltage	24 VDC
Input filter	<1 ms
Input circuit	Sink
Additional functions	4x TPU
Input current at nominal voltage	Approx. 4 mA
Electrical isolation
Group isolation	Input group - Output group
Channel - Bus	Yes
Channel - Channel	No

Digital outputs

Quantity	8 + 1 floating relay contact
Nominal voltage	24 VDC
Nominal output current	0.4 A
Total nominal current	3.2 A
Output circuit	Source
Output protection	Overload protection
Internal protective circuit	Yes
Electrical isolation
Group isolation	Input group - Output group
Channel - Bus	Yes
Channel - Channel	No

Keys

Function keys	15
Soft keys	8
Cursor keys	5
Number block	12

Power supply

Nominal voltage	24 VDC
Power consumption	Max. 20 W

Peripherals

Real-time clock	1 s resolution, nonvolatile
Status indicators	LEDs
System bus for expansions	Expansion module EX101 1 insert slot For B&R SYSTEM 2005 plug-in interface modules
PC card slot
Quantity	1
Memory size
FlashPROM	Max. 4 MB
SRAM	Max. 4 MB
Slots for B&R 2003 screw-in modules
Quantity	6
For CAN bus communication	1
For TPU	3
For serial asynchronous communication	3

Operating conditions

Degree of protection per EN 60529

IP65 (front side)

Ambient conditions

Temperature
Operation	0 to 50°C
Storage	-20 to 60°C
Relative humidity
Operation	10 to 90%
Storage	5 to 95%

Mechanical properties

Dimensions
Width	205 mm
Height	220 mm
Depth	110.4 mm
Weight	1.95 kg

​​

​

​

​
