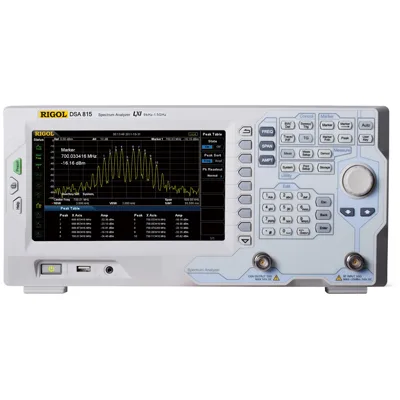

RIGOL Technologies DSA815
Spectrum Analyzer 1.5 Ghz Am/Fm Demodulation Digital If 100 Hz Rbw
Overview
DSA800 series is one of RIGOL's compact size, light weight and economic spectrum analyzers. The digital IF technology guarantees it's reliability and performance to meet the most demanding RF applications.
Features and Benefits:
All-Digital IF Technology
9 kHz to 1.5 GHz Frequency Range
Up to –135 dBm Displayed Average Noise Level (DANL)
–80 dBc/Hz @ 10 kHz Oset Phase Noise
Total Amplitude Uncertainty <1.5 dB
100 Hz Minimum Resolution Bandwidth (RBW)
1.5 GHz Tracking Generator (DSA815-TG)
Advanced Measurement Functions (Option)
EMI Filter and Quasi-Peak Detector Kit (Option)
VSWR Measurement Kit (Option)
Complete Connectivity: LAN, USB Host, USB Device, GPIB (Option)
8" WVGA (800 × 480) Display
Compact Size, Light Weight Design
