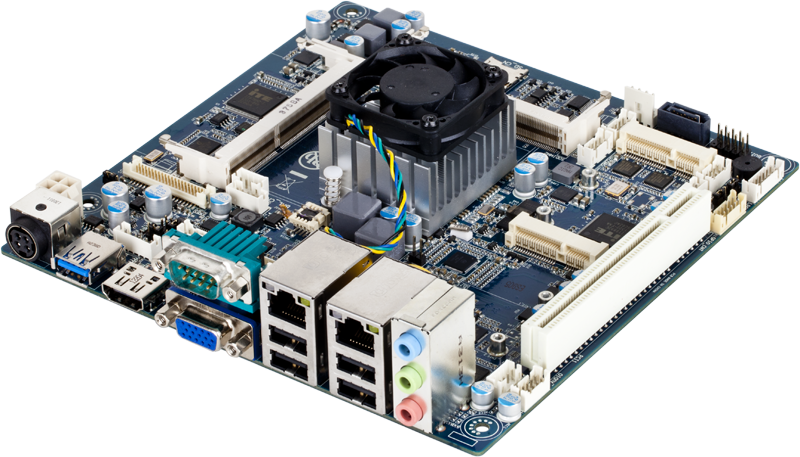

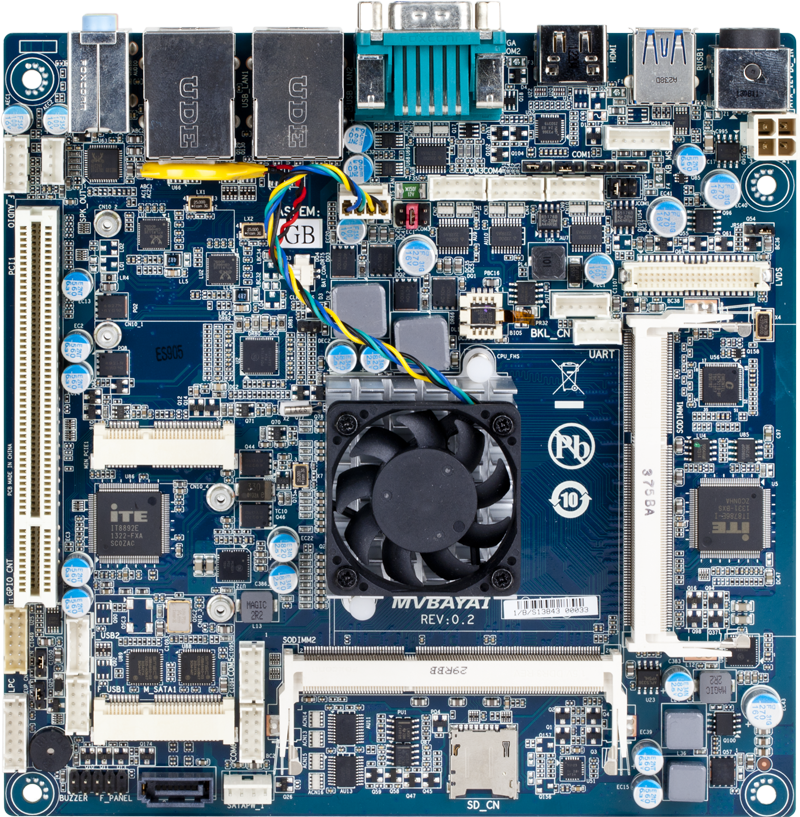

mITX-1900A

Mini-ITX Embedded Motherboard with Intel® J1900 Processor, Dual Channel DDR3L memory, PCI, 6 x COM, 1 x SATA II, 6 x USB

​



GIGAIPC CO, LTD

Checkbox mITX-1900A Mini-ITX Embedded Motherboard with Intel® J1900 Processor, Dual Channel DDR3L memory, PCI, 6 x COM, 1 x SATA II, 6 x USB Datasheet User Manual Download Key Features Mini-ITX form factor Intel® Celeron® Processor J1900 Dual Channel DDR3L, 2 x SO-DIMMs 2 x GbE LAN ports 1 x SATA 3G...

드라이버 & 매뉴얼 다운로드

---

Key Features

​

Mini-ITX form factor

Intel® Celeron® Processor J1900

Dual Channel DDR3L, 2 x SO-DIMMs

2 x GbE LAN ports

1 x SATA 3Gb/s port

HDMI, VGA, eDP (in option), LVDS ports for multiple display

1 x PCIe x4 (Gen2 x 2) expansion slot

6 x COM ports



---

Specification

Form Factor	Mini-ITX 170W x 170D(mm)
CPU	Intel® Celeron® Processor J1900 22nm, 4 cores, 4 threads, up to 2.42 GHz TDP 10W
Socket	1 x FCBGA 1170
Memory	2 x DDR3L SO-DIMM sockets, Max. Capacity 8GB Support Dual channel DDR3L 1333 MHz memory modules
Ethernet	2 x GbE LAN ports (Realtek RTL8111G)
Video	Integrated Graphics Processor - Intel® HD Graphics: 1 x HDMI 1.4 port, max. resolution 1920x1080 @60Hz 1 x VGA port, max. resolution 2560x1600 @60Hz 1 x LVDS port, max. resolution 1920x1200 @60Hz (2 independent display outputs)
Audio	Realtek® Audio Codec
Storage	1 x SATA 3Gb/s port (incl. 1 x SATA supports SATA DOM)
Expansion Slots	1 x Full-size mSATA slot 1 x Full-size Mini-PCIe slot 1 x PCI slot
Internal I/O	1 x 4-pin 12V ATX power connector 1 x SATA power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front audio header 1 x 2W speaker out header 2 x USB 2.0 header 1 x COM header (RS232/422/485) 3 x COM headers (RS-232) 1 x COM header (RS-232 and RI/5V/12V) 1 x GPIO (8 bits) & SMBUS header 1 x PS/2 Keyboard/Mouse header 1 x AT/ATX mode jumper 1 x Backlight control header 1 x Clear CMOS jumper 1 x Buzzer

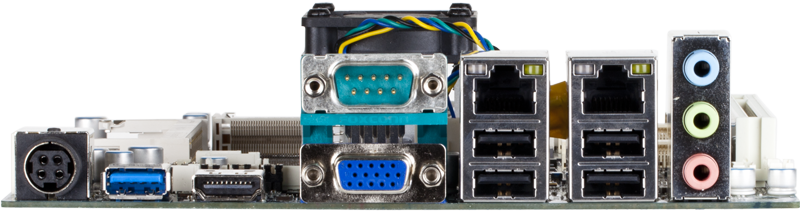

Rear I/O	3 x Audio jacks (Line in, Line out, Mic in) 1 x COM port (RS-232) 1 x HDMI 1 x VGA 2 x RJ45 LAN ports 4 x USB 2.0 1 x USB 3.0 1 x DC Jack (+12VDC)
OS Compatibility	Windows 8 32/64bit Windows 8.1 32/64bit
Operating Properties	Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing)
Packing Content	Capacity: 20pcs Carton size: 550 x 451 x 330(mm) Content: IO Shield x 1 (P/N: 12AIO-MVBAY0-00R) SATA power cables x 1 (P/N: 25CRI-100B00-H3R)
Order Information	Fan version: 9MVBAYAINS-SI Fanless version: 9MVBAYAINS-00
