GIGAIPC 산업용 메인보드 Thin Mini ITX iTXL-3955A

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 3. 16:02

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

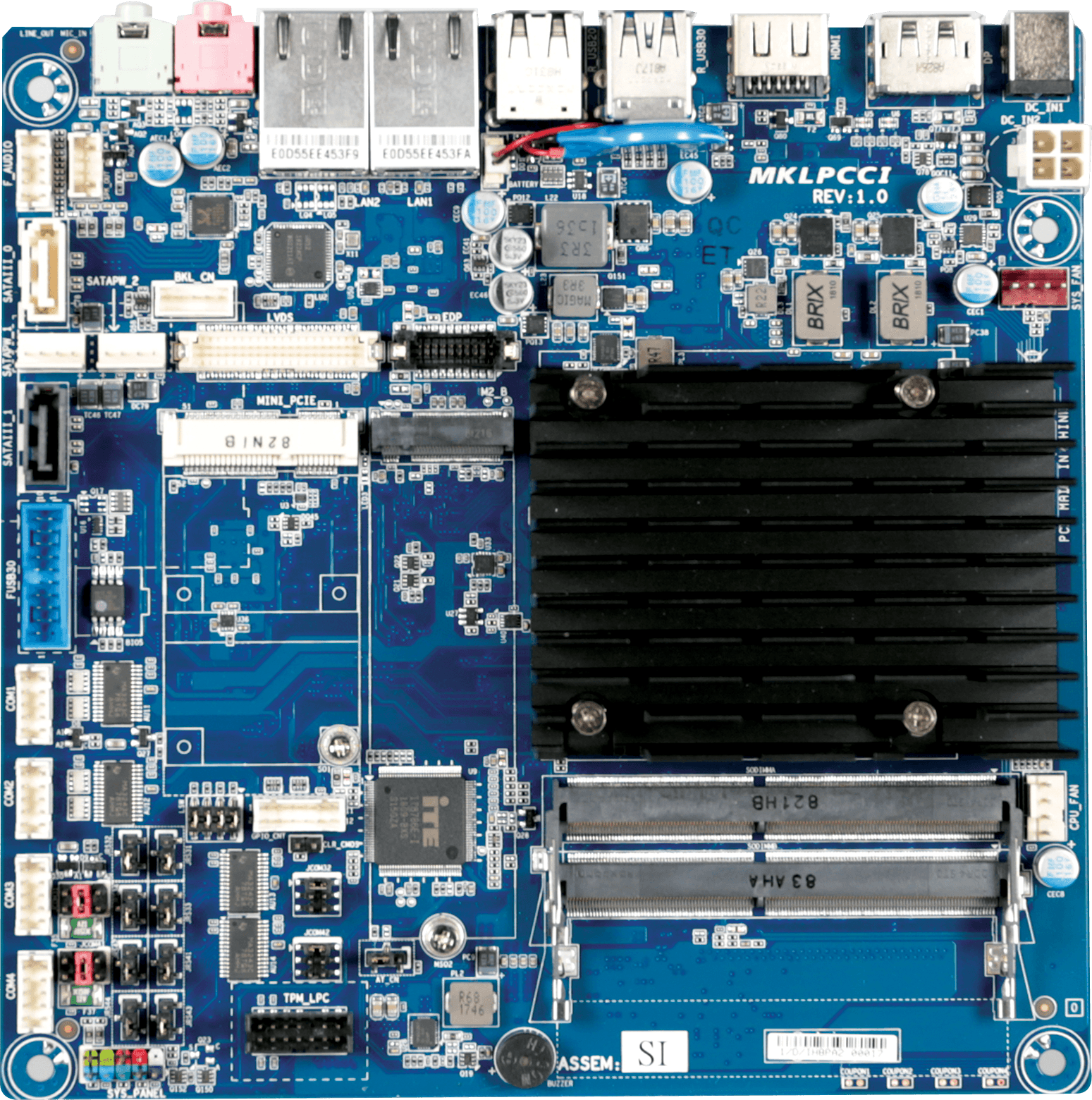

iTXL-3955A

Thin Mini-ITX Embedded Motherboard with Intel® 3955U Processor, Dual Channel DDR4 memory, 4 x COM, 2 x SATA 6Gb/s, 6 x USB

드라이버 & 매뉴얼 다운로드


Key Features

Thin Mini-ITX form factor

Intel® Celeron® Processor 3955U

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

2 x SATA 6Gb/s ports

HDMI, Display Port, LVDS/eDP ports for multiple display

2 x RS232/422/485/5V/12V/RI COM ports

2 x RS232 COM ports

Specification

Form Factor Thin Mini-ITX
170W x 170D(mm)
CPU Intel® Celeron® Processor 3955U
14nm, 2 cores, 4 threads, 2.0 GHz
TDP 15W
Socket 1 x FCBGA1356
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2133 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® i219V and Intel® i211AT)
Video Integrated Graphics Processor - Intel® HD Graphics 510:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @24Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 2 x SATA 6Gb/s ports
(incl. 1 x SATA supports SATA DOM)
Expansion Slots 1 x 2280/2242 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x Full-size Mini PCIe
Internal I/O 1 x 4-pin ATX main power connector
2 x SATA Power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 3.0 headers
2 x COM Headers (RS-232)
2 x COM headers (RS-232/422/485 and RI/5V/12V)
1 x LCD_VCC Pin header
1 x Backlight Control header
1 x GPIO (8 bits) & SMBUS header
1 x Buzzer

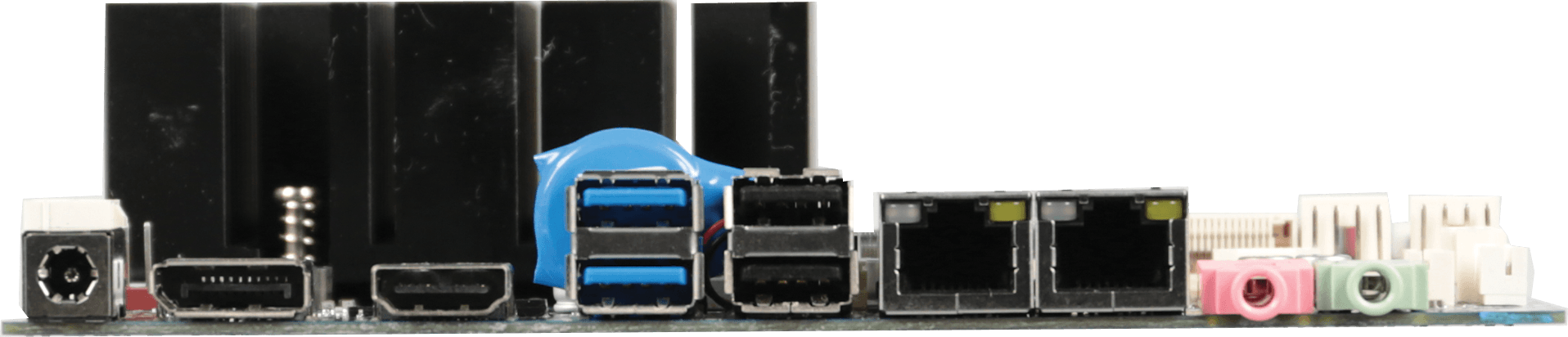

Rear I/O 2 x Audio jacks (Line out, Mic in)
1 x HDMI
1 x Display Port
2 x RJ45 LAN ports
2 x USB 2.0
2 x USB 3.0
1 x DC Jack (+12Vdc)
TPM 1 x TPM Header
OS Compatibility Windows 10 (x64)
Windows 7 (x64)
Operating Properties Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content Capacity: 10pcs
Carton size: 465 x 351 x 217(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MKLPC0-00R)
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
Order information 9MKLPCCIMR-SI (Box Packing)
Optional Kit TPM 2.0 module: 9CTM000NR-00
