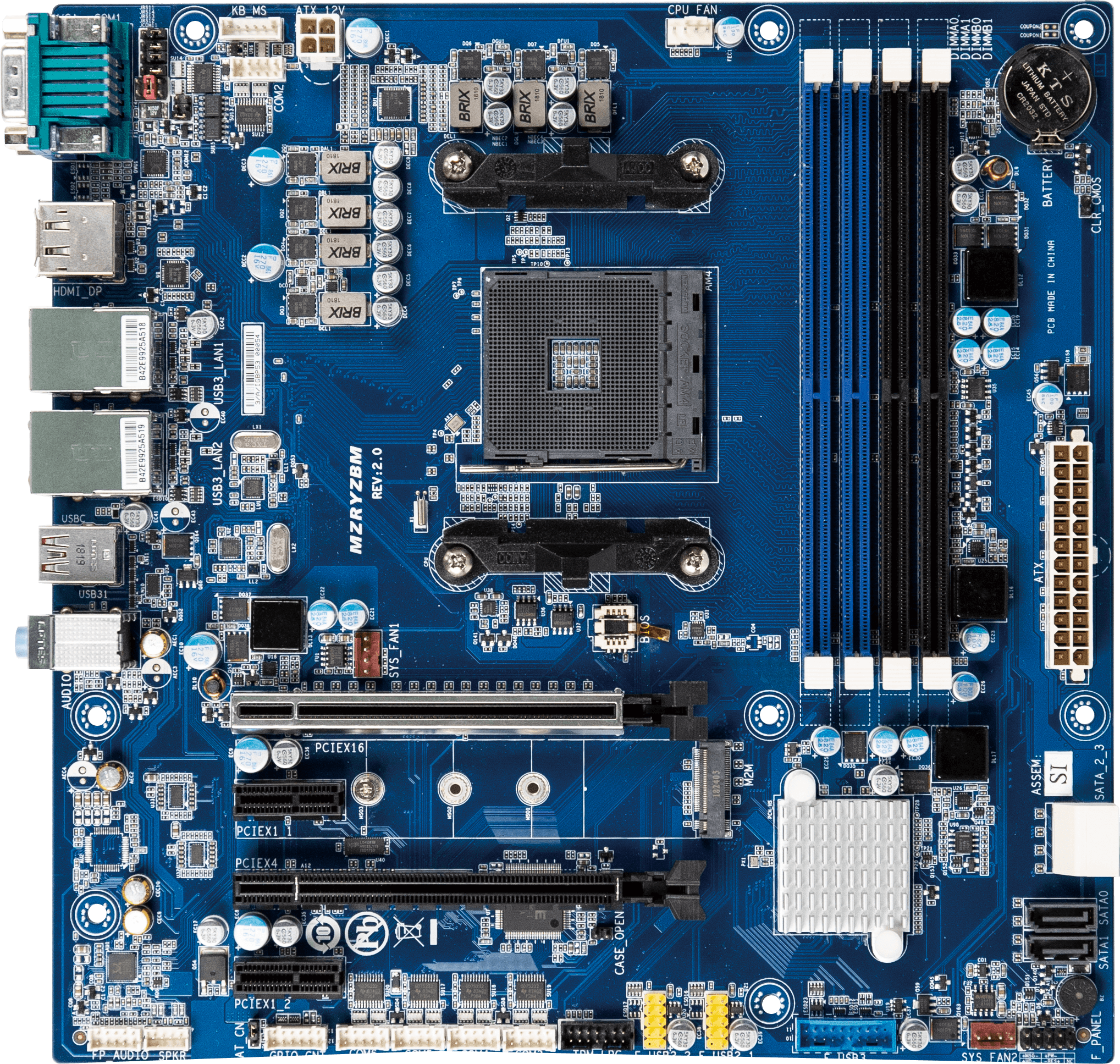

GIGAIPC 산업용 메인보드 Micro ATX uATX-RYZEN (AMD B450 Chipset)

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 3. 15:35

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

uATX-RYZEN

Micro-ATX with AMD® Ryzen3/ Ryzen2 Processors, Dual channel DDR4 memory, PCIe slot, 6 x COM, 10 x USB, 4 x SATA 6Gb/s

드라이버 & 매뉴얼 다운로드




Key Features

  • Micro ATX form factor
  • Supports AMD Ryzen 3/ Ryzen 2 Processors
  • AMD B450
  • Dual Channel DDR4, 4 x DIMMs
  • 2 x GbE LAN ports
  • 4 x SATA 6Gb/s ports
  • HDMI, Display Port, VGA ports for multiple display
  • 1 x RS232/422/485/5V/12V/RI COM port
  • 5 x RS232 COM ports



Specification

Form Factor Micro ATX
244W x 244D(mm)
CPU Support AMD 3rd Gen/2nd Gen/1st Gen Ryzen™ CPU/APU AM4 µPGA (Matisse/Picasso/Raven2/Pinnacle/Raven/Summit Ridge)
TDP under 95W
Socket 1 x Socket AM4
Chipset AMD B450
Memory 4 x DDR4 DIMM sockets, Max. Capacity 64GB
Support Dual channel DDR4 2666/2400/2133 MHz memory modules
Ethernet 2 x GbE LAN ports (Realtek® RTL8111HS)
Video Integrated Graphics Process - Radeon™ Vega 11/8/3 Graphics:
1 x HDMI 1.4
1 x Display Port
1 x VGA


(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 4 x SATA 6Gb/s ports (RAID/0/1/10)
Expansion Slots 1 x PCIe x16 (Gen3 x16)
1 x PCIe x4 (Gen2 x2)
2 x PCIe x1 (Gen2 x1)
1 x 2280/2260/2242 M.2 M-Key (PCIe x4, SATA6Gb/s)
Internal I/O 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
2 x System fan headers
1 x Front panel header
1 x Front audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x USB 3.0 headers
5 x COM headers (RS-232)
1 x PS/2 Keyboard/Mouse Connector
1 x GPIO (8 bits) & SMBUS header
1 x Clear CMOS jumper
1 x Buzzer

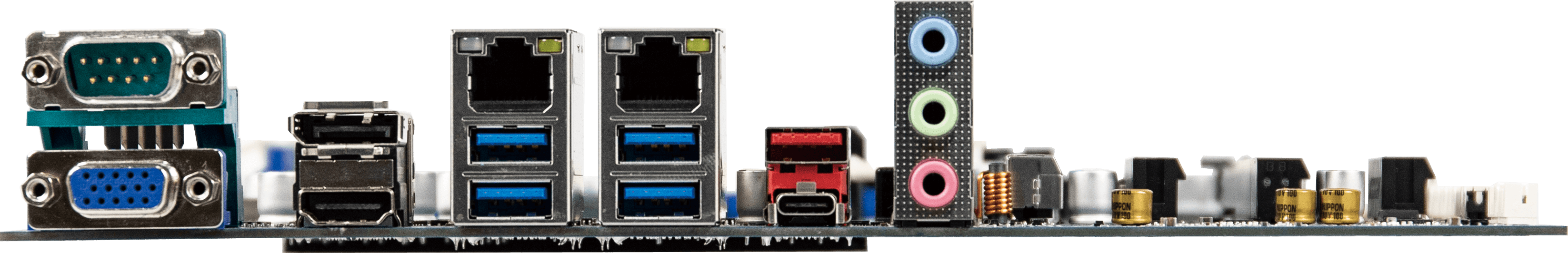

Rear I/O 3 x Audio jacks (Line in, Line out, Mic in)
1 x COM port (RS-232/422/485 and RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN ports
4 x USB 3.0
1 x USB 3.1 Gen2
1 x USB 3.1 Gen2 (Type C)
TPM 1 x TPM header
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packaging Content Bulk Packing Capacity: 20pcs
Carton size: 609 x 581 x 362(mm)
Content:
IO Shield x 1 (12AIO-MZRYZ0-00R)
Order Information 9MZRYZBMNR-SI (Bulk Packing)
Optional Kit TPM 2.0 module: 9CTM000NR-00
