GIGAIPC 산업용 메인보드 10x10 SBC QBi-4200A

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 3. 16:37

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

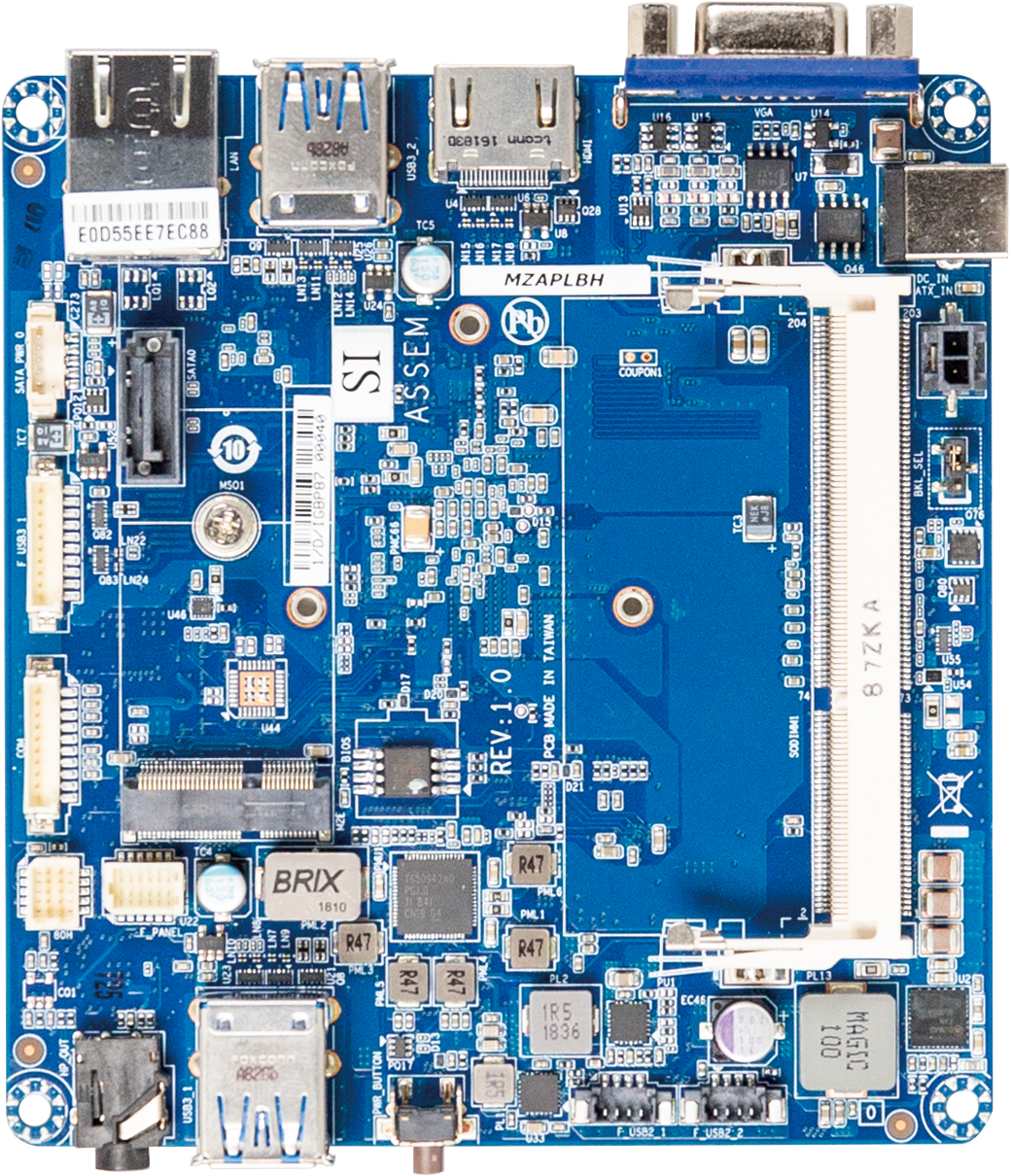

QBi-4200A

Embedded Compact Board with Intel® Pentium® Processor N4200, DDR3L memory, 1 x COM, 1 x SATA 6Gb/s, 7 x USB, 32GB eMMC

​드라이버 & 매뉴얼 다운로드



Key Features

Embedded IPC Motherboard

Intel® Pentium® Processor N4200

Single Channel DDR3L, 1 x SO-DIMM

1 x GbE LAN port

1 x SATA 6Gb/s ports

HDMI, VGA, eDP ports for multiple display

1 x RS232 COM port

Specification

Form Factor Embedded Compact Board
105W x 110D(mm)
CPU Intel® Pentium® Processor N4200
14nm, 4 cores, 4 threads, up to 2.50 GHz
TDP 6W
Socket 1 x FCBGA 1296
Memory 1 x DDR3L SO-DIMM sockets, Max. Capacity 8GB
Support Single Channel DDR3L 1866 MHz memory module
Ethernet 1 x GbE LAN port (Realtek® RTL8111HS)
Video Integrated Graphics Processor -Intel® HD Graphics 505:
1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz
1 x VGA port, supporting a maximum resolution 2560x1600 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x SATA 6Gb/s port
1 x eMMC 32GB
Expansion Slots 1 x 2230 M.2 E-Key
Internal I/O 1 x 2 pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
1 x USB 3.0 header
1 x COM header (RS232)

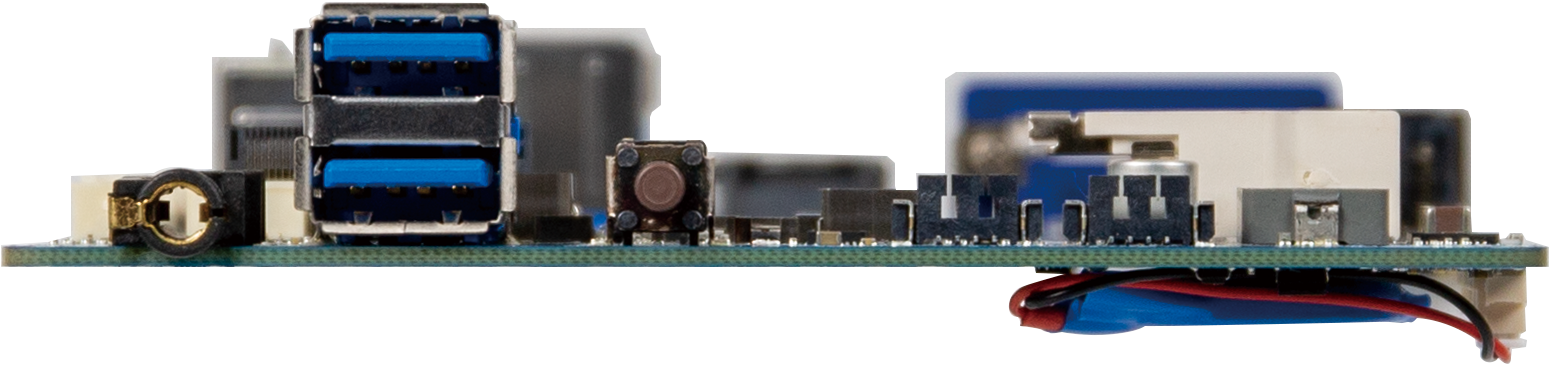

Front IO 2 x USB 3.0
1 x Power button
1 x Audio Combo Jack (Headphone & Microphone)

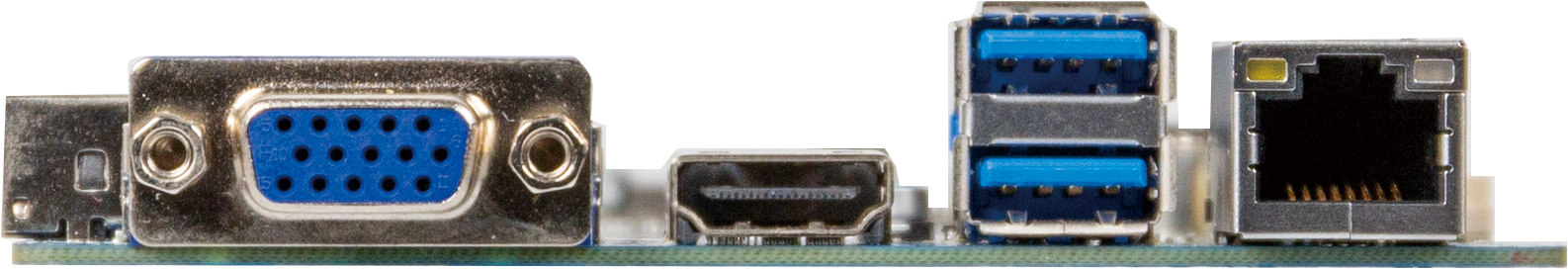

Rear IO 1 x HDMI
1 x VGA
1 x RJ45 LAN port
2 x USB 3.0
Side IO 1 x DC Jack (+12V~24VDC)
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content Capacity: 20pcs
Carton size: 488 x 361 x 178(mm)
Content:
SATA Power cable 150mm x 1 (P/N: 25CRI-150621-K1R)
Order information 9MZAPLAHNR-SI (Bulk Packing)
Optional Kit Fanless Heatsink P/N: 12SP2-090018-00R
Heat spreader P/N: 25ST5-CGAA00-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
