QBiP-8265A
3.5” SubCompact Board with 8th Generation Intel® Core™ i5-8265U Processor, Dual Channel DDR4 memory, 4 x COM , 2 x SATA 6Gb/s, 4 x USB 3.1 Gen2, 2 x USB 2.0
GIGAIPC 산업용 메인보드 3.5 inch SBC QBiP-8265A
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
3.5’’ SBC
Intel® Core™ i5-8265U Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN ports
2 x SATA 6Gb/s ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
2 x HDMI, LVDS ports for multiple display
1 x RS-232/422/485 and 5V/12V/RI COM port
3 x RS-232 COM ports
4 x USB 3.1 Gen 2
Specification
Form Factor | 3.5" SBC 146W x 101.7D(mm) |
CPU | Intel® Core™ i5-8265U Processor 14nm, 4 cores, 8 threads, up to 3.9 GHz TDP 15W 6 MB Smart Cache |
Socket | 1 x FCBGA 1528 |
Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 2400 MHz memory modules |
Ethernet | 2 x GbE LAN ports (Intel® i219V and Intel® i211AT) |
Video | Integrated Graphics Processor - Intel® UHD Graphics 620: 2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2304 @24Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 2 x SATA 6Gb/s ports (SATA RAID 0/1/5) |
Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |
Internal I/O | 1 x 4 pin box power connector (DC in +9V~36VDC) (+48VDC for optional) 2 x SATA Power headers 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 2 x USB 2.0 headers 3 x COM headers (RS-232) 1 x Backlight control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBUS header |

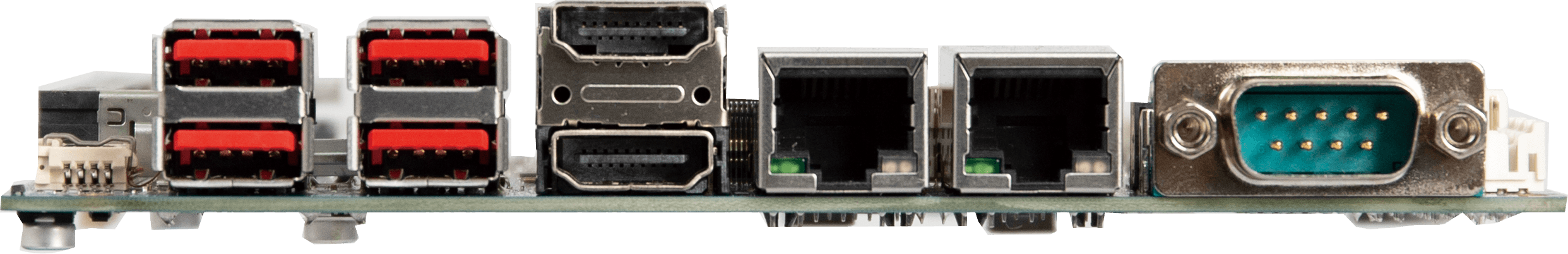

Rear I/O | 1 x COM port (RS-232/422/485 and RI/5V/12V) 2 x HDMI 2 x RJ45 LAN ports 4 x USB 3.1 Gen2 |
TPM | 1 x TPM Header |
OS Compatibility | Windows 10 (x64) |
Operating Properties | Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
Packing Content | Capacity: 10pcs Carton size: 465 x 351 x 217(mm) Content: SATA Power cable x 1 (P/N: 25CRI-200B02-K1R) |
Order Information | 9MWHLUBSMR-SI (Box Packing) |
Optional Kit | Fanless Heatsink P/N: 25ST1-153108-A7R Fansink P/N: 25ST4-113100-A7R Heat spreader P/N: 25ST5-8265A0-A8R TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
