GIGAIPC 산업용 메인보드 10x10 SBC QBi-7100B

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 12. 14:25



자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

QBi-7100B

Embedded Compact Board with Intel® Core™ i3-7100U Processor, Dual Channel DDR4 memory, 1 x COM, 1 x SATA 6Gb/s, 7 x USB

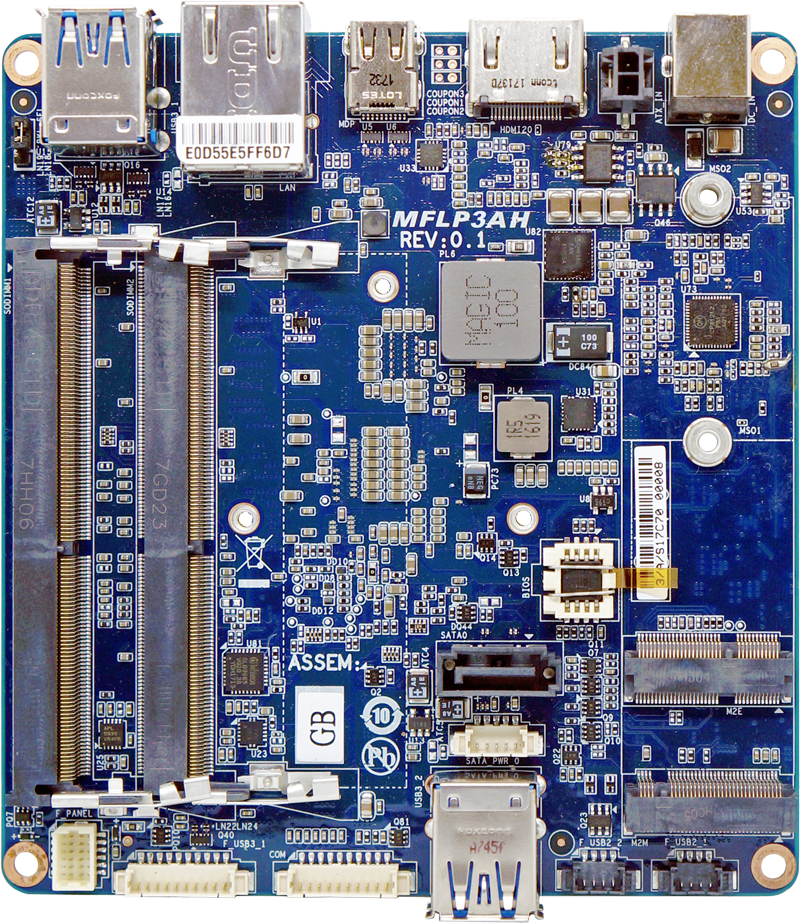

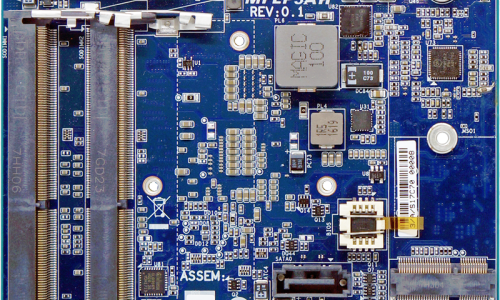

GIGAIPC 산업용 메인보드 10x10 SBC QBi-7100B

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드


Key Features

Embedded IPC Motherboard

Intel® Core™ i3-7100U Processor

Dual Channel DDR4, 2 x SO-DIMMs

Intel® Optane™ Memory Ready

1 x GbE LAN port

1 x SATA 6Gb/s port

Ultra-Fast M.2 with PCIe Gen3 x4 interface

HDMI, Mini Display port, eDP ports for multiple display

1 x RS232 COM port


Specification

Form Factor Embedded Compact Board
105W x 110D(mm)
CPU Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads 2.40 GHz
TDP 15W
Socket 1 x FCBGA 1356
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2133 MHz memory modules
Ethernet 1 x GbE LAN port (Intel® i219V)
Video Integrated Graphics Processor - Intel® HD Graphics 620 support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x mini DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
(3 independent display outputs)
Audio Intel® integrated Audio
Storage 1 x SATA 6Gb/s port (RAID 0/1)
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O 1 x 2 pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
1 x USB 3.0 header
1 x COM header (RS232)
Front IO 2 x USB 3.0
1 x Power button

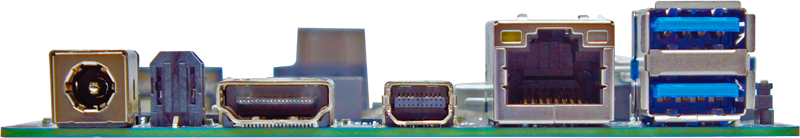

Rear IO 1 x HDMI
1 x Mini Display Port
1 x RJ45 LAN port
2 x USB 3.0
1 x DC Jack (+12~24VDC Full Range)
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content Capacity: 20pcs
Carton size: 488 x 361 x 178(mm)
Content:
CABLE SATA POWER 150mm x 1 (P/N: 25CRI-150621-K1R)
Order information 9MFLP3AHNR-SI (Bulk Packing)
Optional Kit Fansink P/N: 25ST4-343202-C1R
Heat spreader P/N: 25ST5-CKAA01-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
