GIGAIPC 산업용 메인보드 10x10 SBC Whisky Lake U QBi-8565A

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 12. 14:43

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

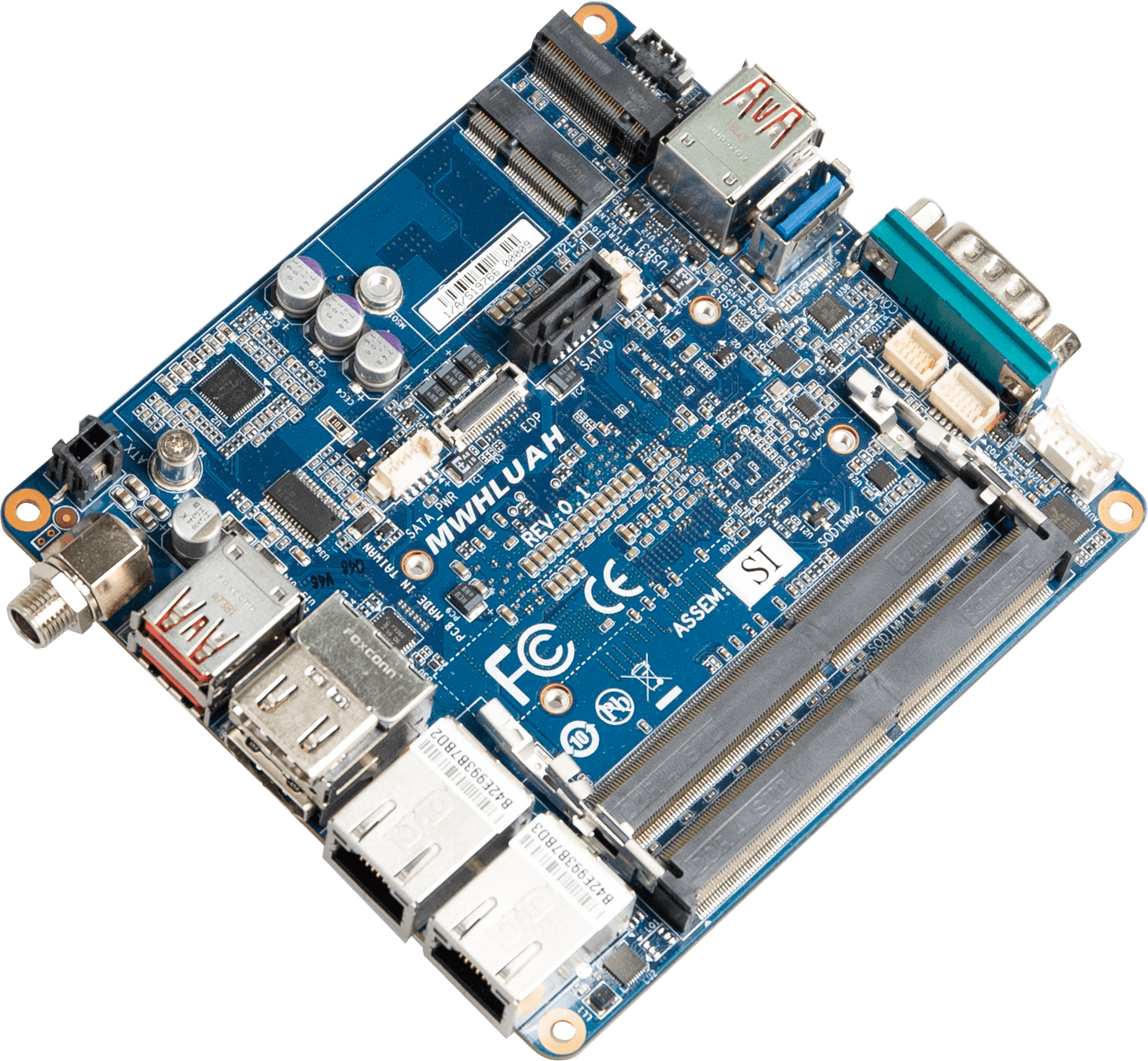

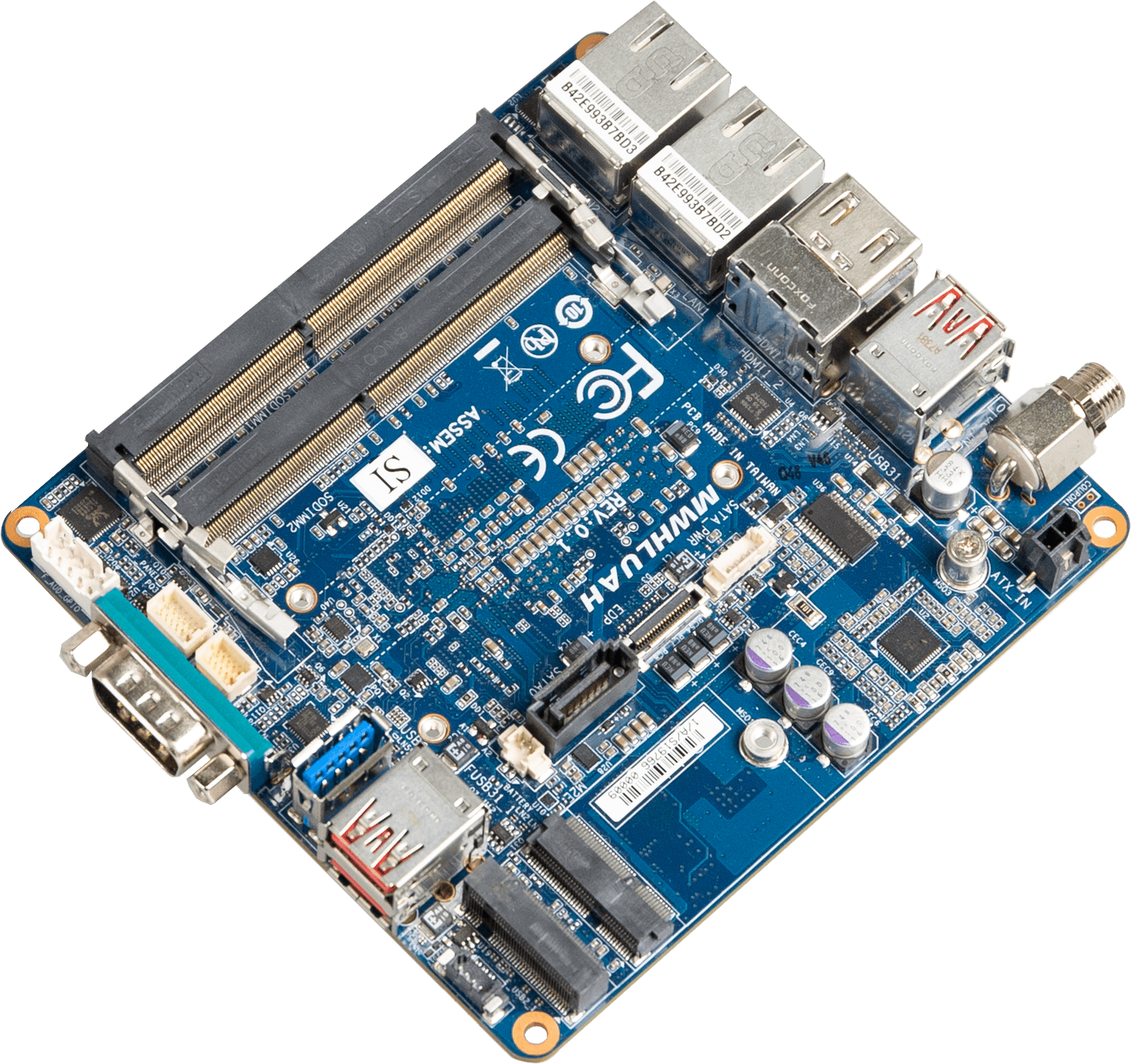

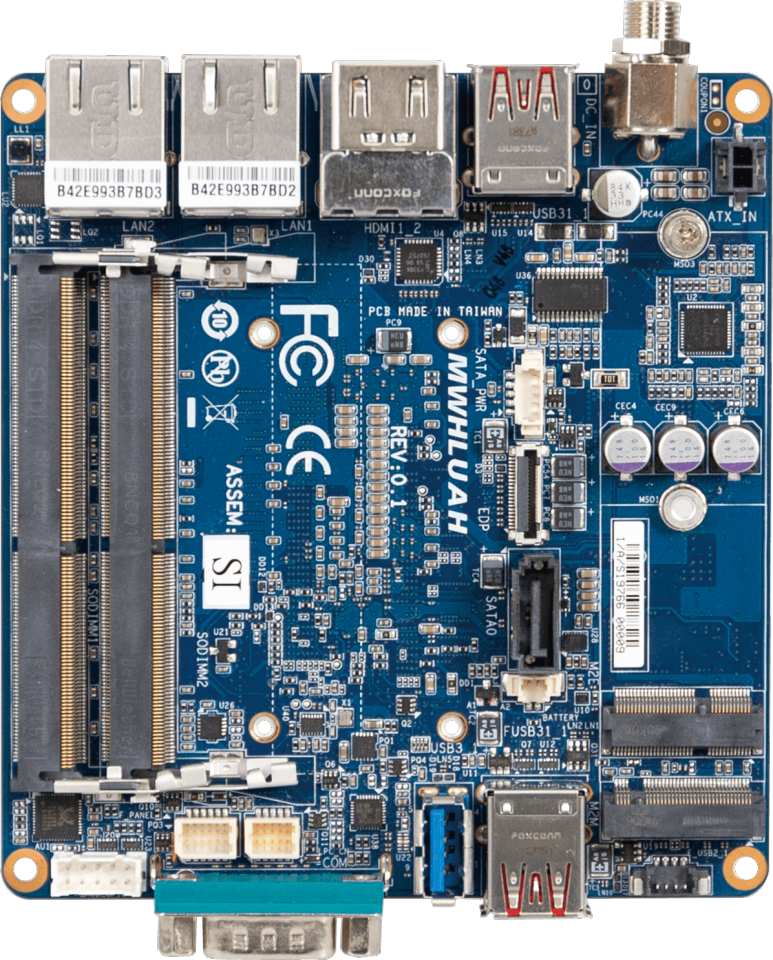

QBi-8565A

Embedded Compact Board with Intel® Core™ i7-8565U Processor, Dual Channel DDR4 memory, 1 x COM, 1 x SATA 6Gb/s, 6 x USB

GIGAIPC 산업용 메인보드 10x10 SBC Whisky Lake U QBi-8565A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드


Key Features

Embedded IPC Motherboard

Intel® Core™ i7-8565U Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

1 x SATA 6Gb/s port

Ultra-Fast M.2 with PCIe Gen3 x4 interface

2 x HDMI ports, eDP port for multiple display

1 x RS-232/422/485 COM port


Specification

Form Factor Embedded Compact Board
105W x 110D(mm)
CPU Intel® Core™ i7-8565U Processor
14nm, 4 cores, 8 threads, up to 4.6GHz
TDP 15W
Socket 1 x FCBGA 1528
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2400 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® i219V & Realtek® RTL8111HS)
Video Integrated Graphics Processor - Intel® UHD Graphics 620 support:
2 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @24Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x SATA 6Gb/s port (RAID 0/1)
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O 1 x 2-pin power connector
1 x SATA Power header/optional for eDP Power
1 x CPU fan header
1 x Front panel header
1 x Front Audio header/optional for GPIO (8 bits) & SMBUS header
1 x USB 2.0 header
1 x Vertical USB3.0 connector (flexible to PCIe x1)

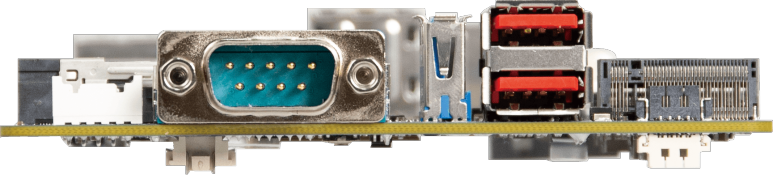

Front IO 2 x USB 3.1 Gen2
1 x Power button
1 x COM port (RS-232/422/485)

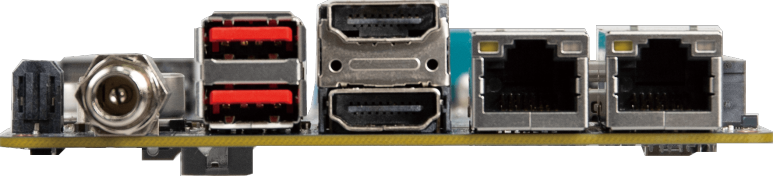

Rear IO 2 x HDMI
2 x RJ45 LAN ports
2 x USB 3.1 Gen2
1 x Screw type DC Jack (+9~36VDC Full Range)
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packaging Content Capacity: 10pcs
Carton size: 465x351x217(mm)
Content:
CABLE SATA POWER 150mm x 1 (P/N: 25CRI-150621-K1R)
Order Information 9MWHLUAHMR-SI (Box Packing)
Optional Kit Fanless Heatsink P/N: 25ST1-123118-AFR
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
