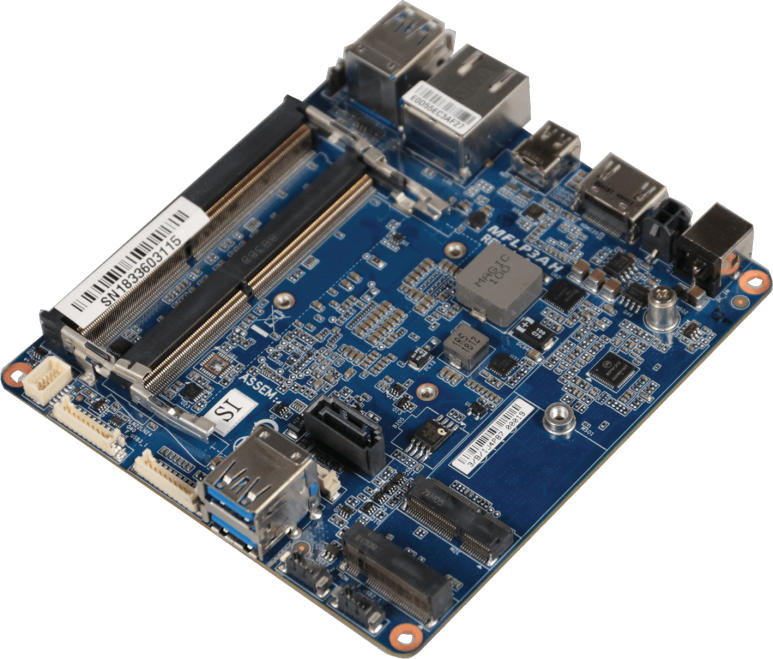

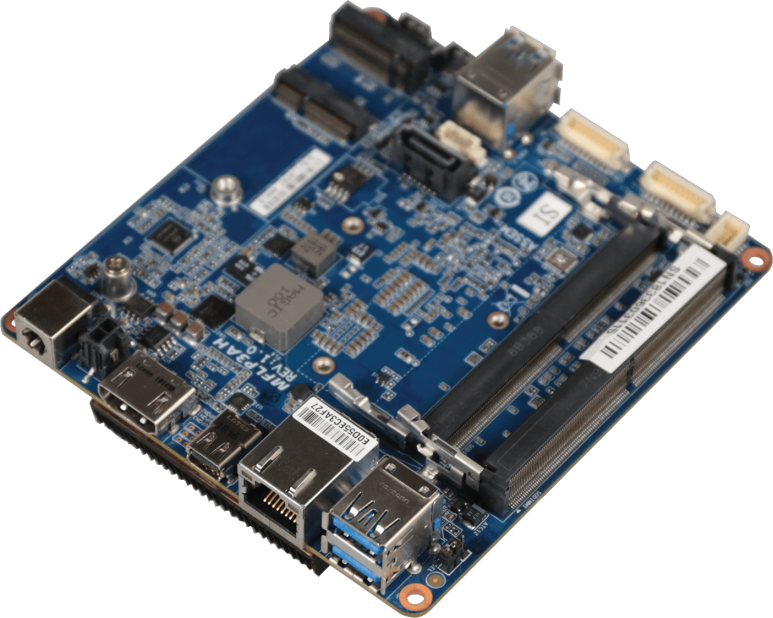

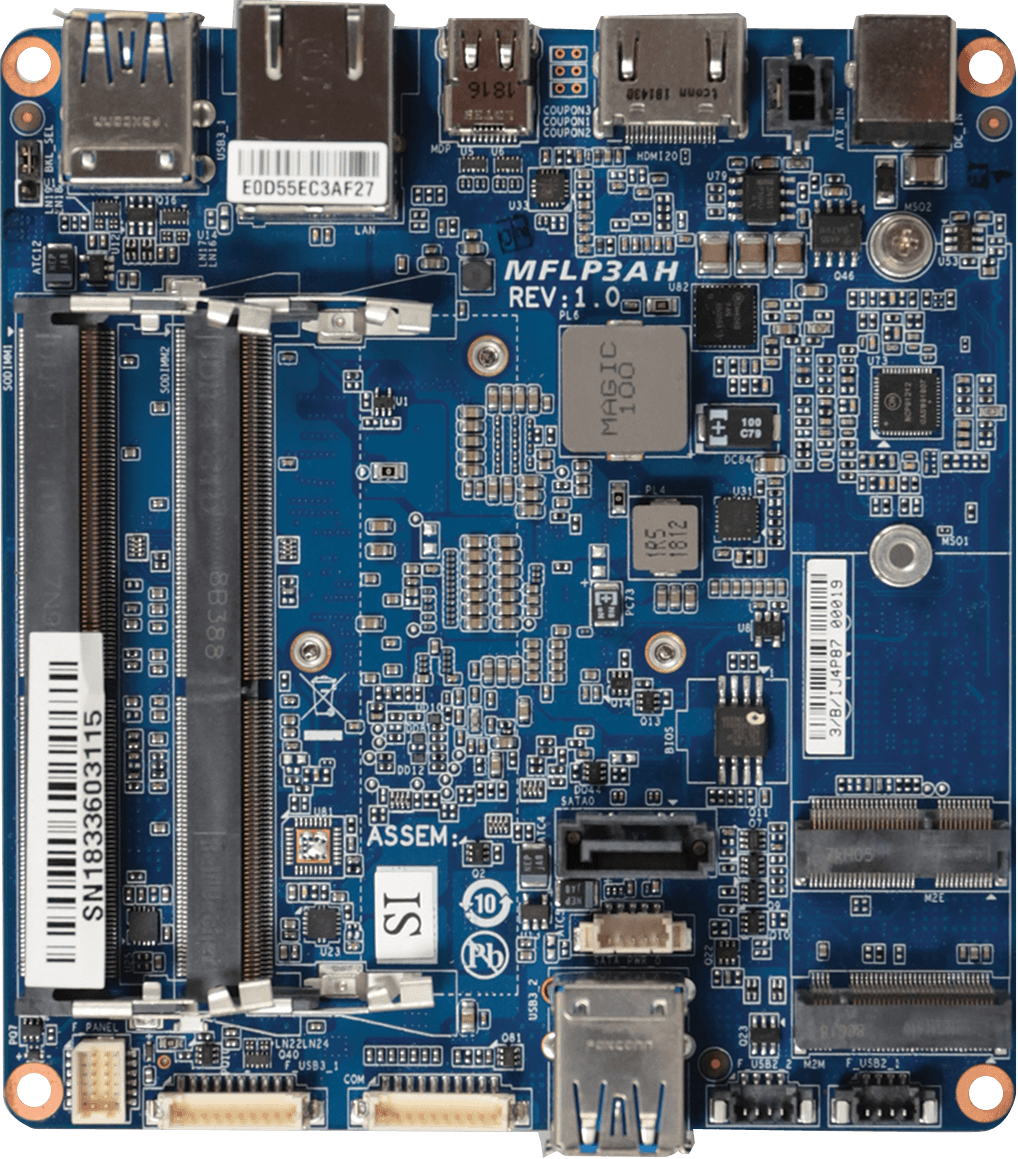

QBi-3965B

Embedded Compact Board with Intel® Celeron® 3965U Processor, Dual Channel DDR4 memory, 1 x COM , 1 x SATA 6Gb/s, 7 x USB

​

GIGAIPC 산업용 메인보드 10x10 SBC Kabylake U QBi-3965B

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드

---

​

Key Features

​

Embedded IPC Motherboard

Intel® Celeron® 3965U Processor

Dual Channel DDR4, 2 x SO-DIMMs

1 x GbE LAN port

1 x SATA 6Gb/s port

HDMI, Mini Display port, eDP ports for multiple display

1 x RS232 COM port

---

Specification

Form Factor	Embedded Compact Board 105W x 110D(mm)
CPU	Intel® Celeron® 3965U Processor 14nm, 2 cores, 2 threads 2.20 GHz TDP 15W
Socket	1 x FCBGA 1356
Memory	2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 2133 MHz memory modules
Ethernet	1 x GbE LAN port (Intel® i219V)
Video	Integrated Graphics Processor - Intel® HD Graphics 620 support: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @24Hz 1 x mini DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz (3 independent display outputs)
Audio	Intel® integrated Audio
Storage	1 x SATA 6Gb/s port
Expansion Slots	1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key
Internal I/O	1 x 2 pin power connector 1 x SATA Power header 1 x CPU fan header 1 x Front panel header 2 x USB 2.0 headers 1 x USB 3.0 header 1 x COM header (RS232)
Front IO	2 x USB 3.0 1 x Power button
Rear IO	1 x HDMI 1 x Mini Display port 1 x RJ45 LAN ports 2 x USB 3.0 1 x DC Jack (+12V~24VDC)
OS Compatibility	Windows 10 (x64)
Operating Properties	Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing)
Packaging Content	Capacity: 10pcs Carton size: 465x351x217(mm) Content: CABLE SATA POWER 150mm x 1 (P/N: 25CRI-200B02-K1R)
Order Information	9MFLPCAHMR-SI (Box Packing)
Optional Kit	Fansink P/N: 25ST4-343202-C1R Heat spreader P/N: 25ST5-CKAA01-A8R TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R
