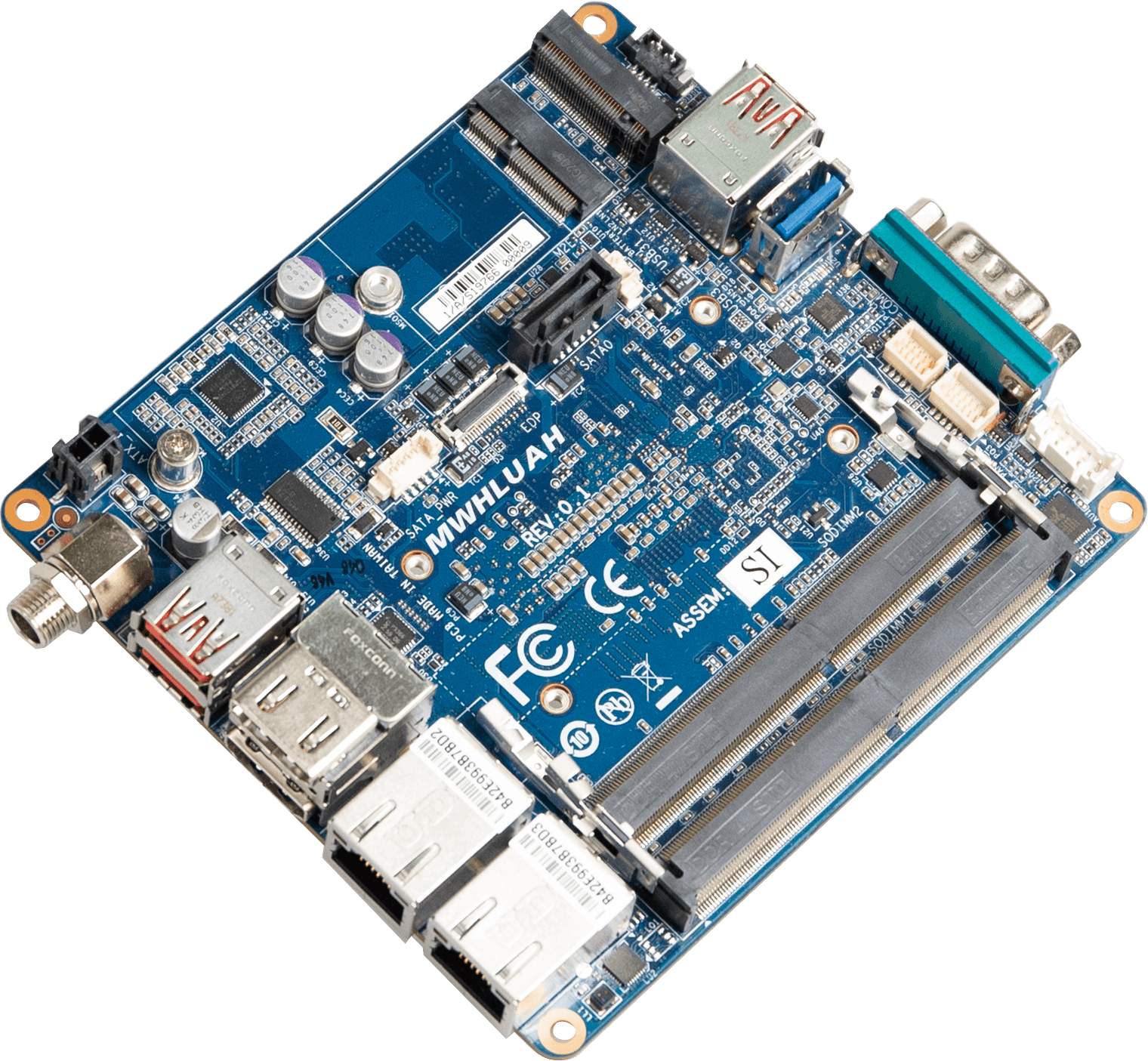

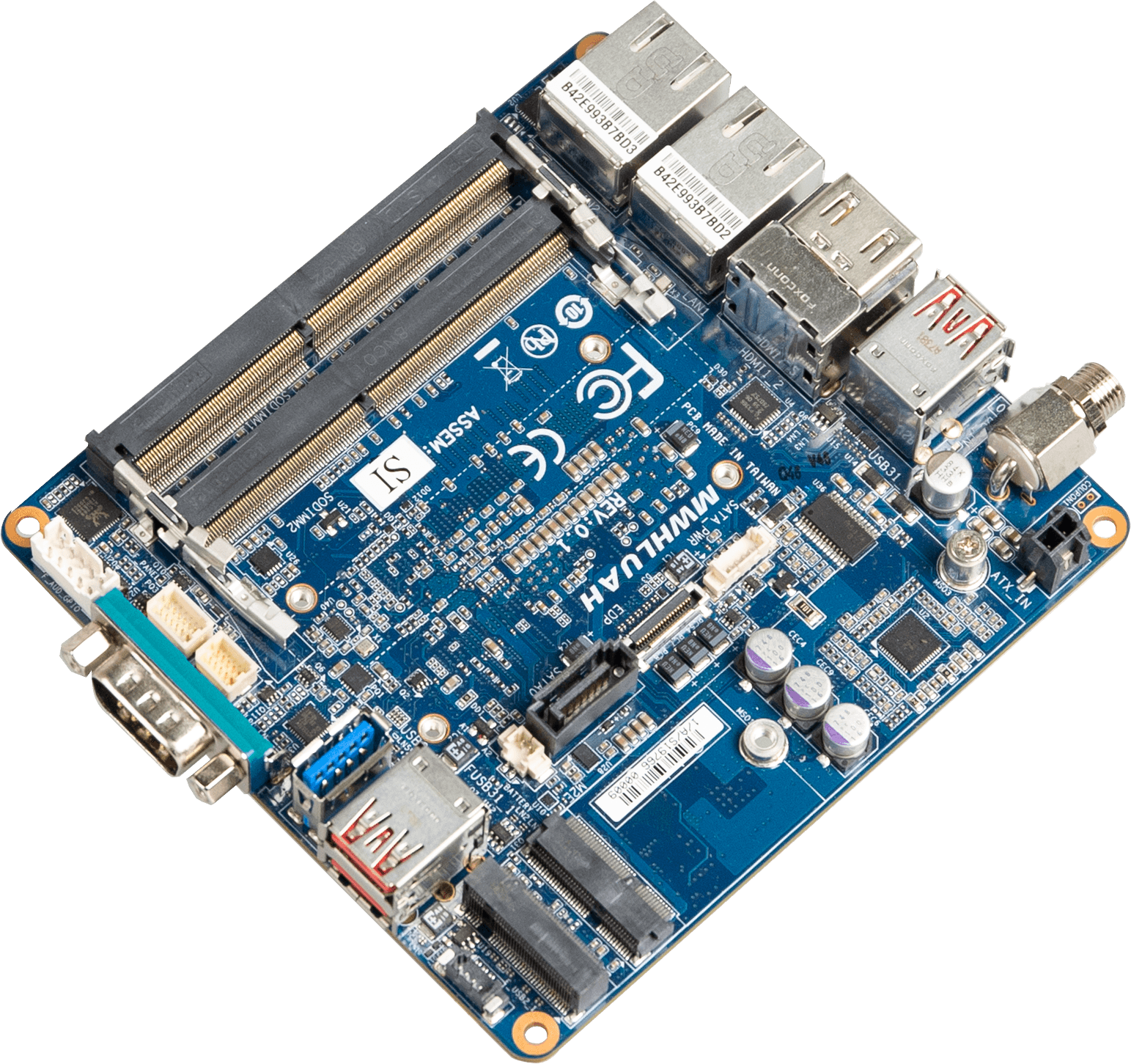

QBi-8265A

Embedded Compact Board with Intel® Core™ i5-8265U Processor, Dual Channel DDR4 memory, 1 x COM , 1 x SATA 6Gb/s, 6 x USB

​

GIGAIPC 산업용 메인보드 10x10 SBC Whisky Lake U QBi-8265A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드

​

---

Key Features

​

Embedded IPC Motherboard

Intel® Core™ i5-8265U Processor

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

1 x SATA 6Gb/s port

Ultra-Fast M.2 with PCIe Gen3 x4 interface

2 x HDMI ports, eDP port for multiple display

1 x RS-232/422/485 COM port

---

Specification

Form Factor	Embedded Compact Board 105W x 110D(mm)
CPU	Intel® Core™ i5-8265U Processor 14nm, 4 cores, 8 threads, up to 3.9 GHz TDP 15W
Socket	1 x FCBGA 1528
Memory	2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB Support Dual channel DDR4 2400 MHz memory modules
Ethernet	2 x GbE LAN ports (Intel® i219V & Realtek® RTL8111HS)
Video	Integrated Graphics Processor - Intel® UHD Graphics 620 support: 2 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @24Hz 1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz (3 independent display outputs)
Audio	Realtek® Audio Codec
Storage	1 x SATA 6Gb/s port (RAID 0/1)
Expansion Slots	1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O	1 x 2-pin power connector 1 x SATA Power header/optional for eDP Power 1 x CPU fan header 1 x Front panel header 1 x Front Audio header/optional for GPIO (8 bits) & SMBUS header 1 x USB 2.0 header 1 x Vertical USB3.0 connector (flexible to PCIe x1)

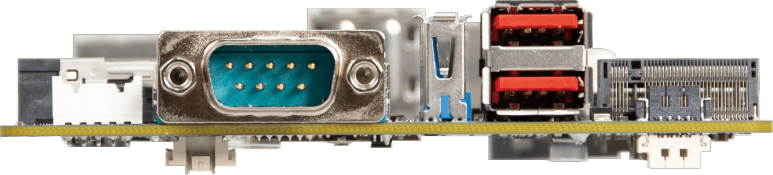

Front IO	2 x USB 3.1 Gen2 1 x Power button 1 x COM port (RS-232/422/485)
Rear IO	2 x HDMI 2 x RJ45 LAN ports 2 x USB 3.1 Gen2 1 x Screw type DC Jack (+9~36VDC Full Range)
OS Compatibility	Windows 10 (x64)
Operating Properties	Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing)
Packaging Content	Capacity: 10pcs Carton size: 465x351x217(mm) Content: CABLE SATA POWER 150mm x 1 (P/N: 25CRI-150621-K1R)
Order information	9MWHLUBHMR-SI (Box Packing)
Optional Kit	Fanless Heatsink P/N: 25ST1-123118-AFR TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R
