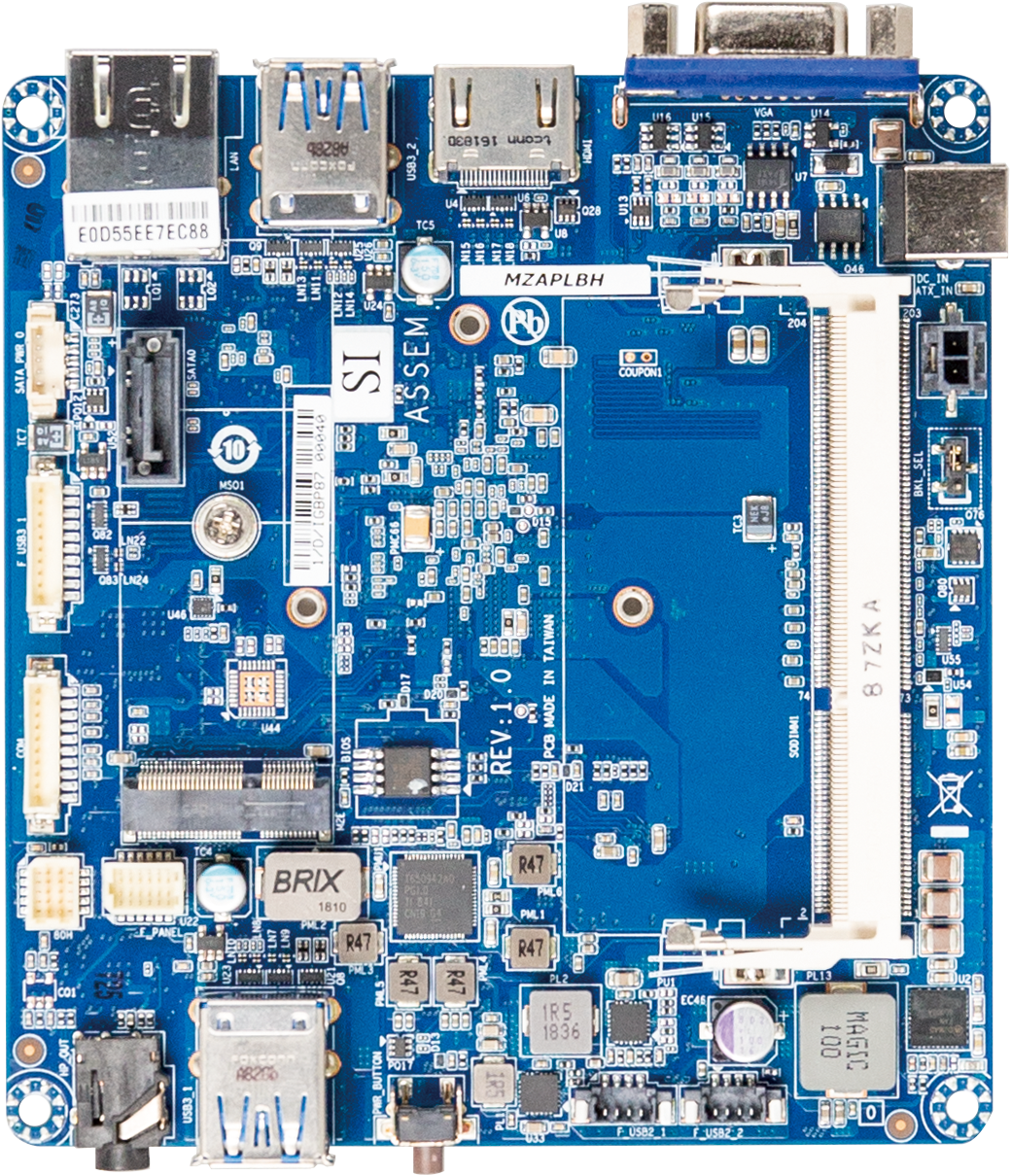

QBi-4200A
Embedded Compact Board with Intel® Pentium® Processor N4200, DDR3L memory, 1 x COM, 1 x SATA 6Gb/s, 7 x USB, 32GB eMMC
Key Features
Embedded IPC Motherboard
Intel® Pentium® Processor N4200
Single Channel DDR3L, 1 x SO-DIMM
1 x GbE LAN port
1 x SATA 6Gb/s ports
HDMI, VGA, eDP ports for multiple display
1 x RS232 COM port
Specification
| Form Factor | Embedded Compact Board 105W x 110D(mm) |
| CPU | Intel® Pentium® Processor N4200 14nm, 4 cores, 4 threads, up to 2.50 GHz TDP 6W |
| Socket | 1 x FCBGA 1296 |
| Memory | 1 x DDR3L SO-DIMM sockets, Max. Capacity 8GB Support Single Channel DDR3L 1866 MHz memory module |
| Ethernet | 1 x GbE LAN port (Realtek® RTL8111HS) |
| Video | Integrated Graphics Processor -Intel® HD Graphics 505: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution 2560x1600 @60Hz 1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz (3 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x SATA 6Gb/s port 1 x eMMC 32GB |
| Expansion Slots | 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 2 pin power connector 1 x SATA Power header 1 x CPU fan header 1 x Front panel header 2 x USB 2.0 headers 1 x USB 3.0 header 1 x COM header (RS232) |

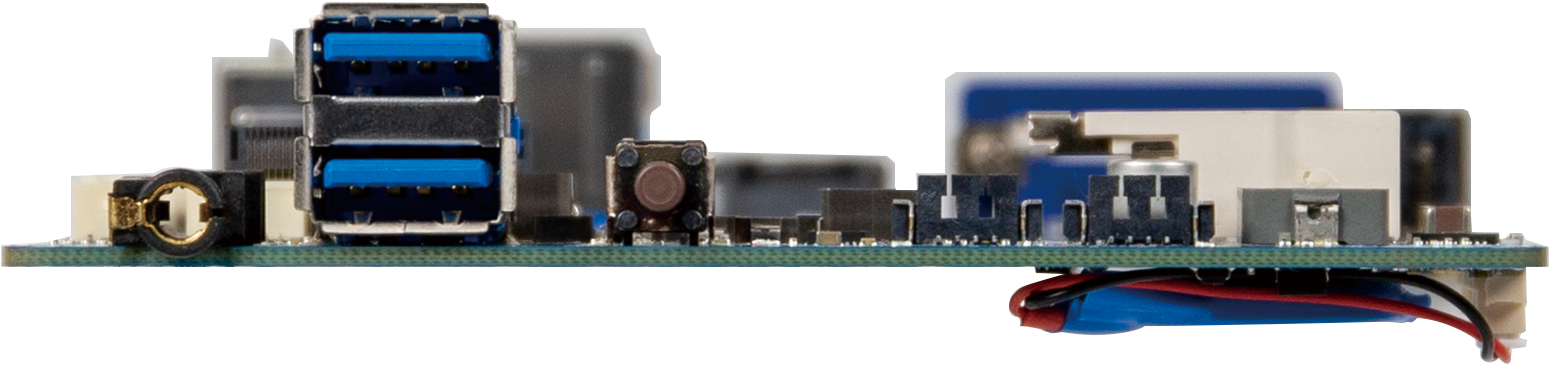

| Front IO | 2 x USB 3.0 1 x Power button 1 x Audio Combo Jack (Headphone & Microphone) |

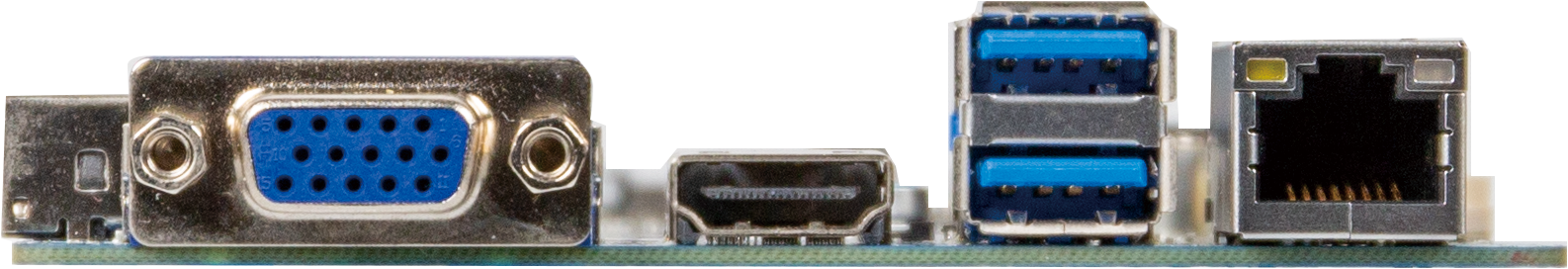

| Rear IO | 1 x HDMI 1 x VGA 1 x RJ45 LAN port 2 x USB 3.0 |
| Side IO | 1 x DC Jack (+12V~24VDC) |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Capacity: 20pcs Carton size: 488 x 361 x 178(mm) Content: SATA Power cable 150mm x 1 (P/N: 25CRI-150621-K1R) |
| Order information | 9MZAPLAHNR-SI (Bulk Packing) |
| Optional Kit | Fanless Heatsink P/N: 12SP2-090018-00R Heat spreader P/N: 25ST5-CGAA00-A8R TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
