mITX-Q370A

Mini-ITX with Intel® Q370 Chipset that supports 9th/8th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 10 x USB, 3 x SATA 6Gb/s

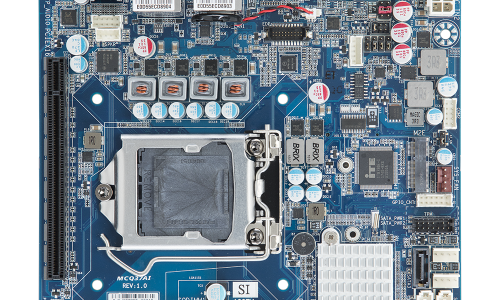

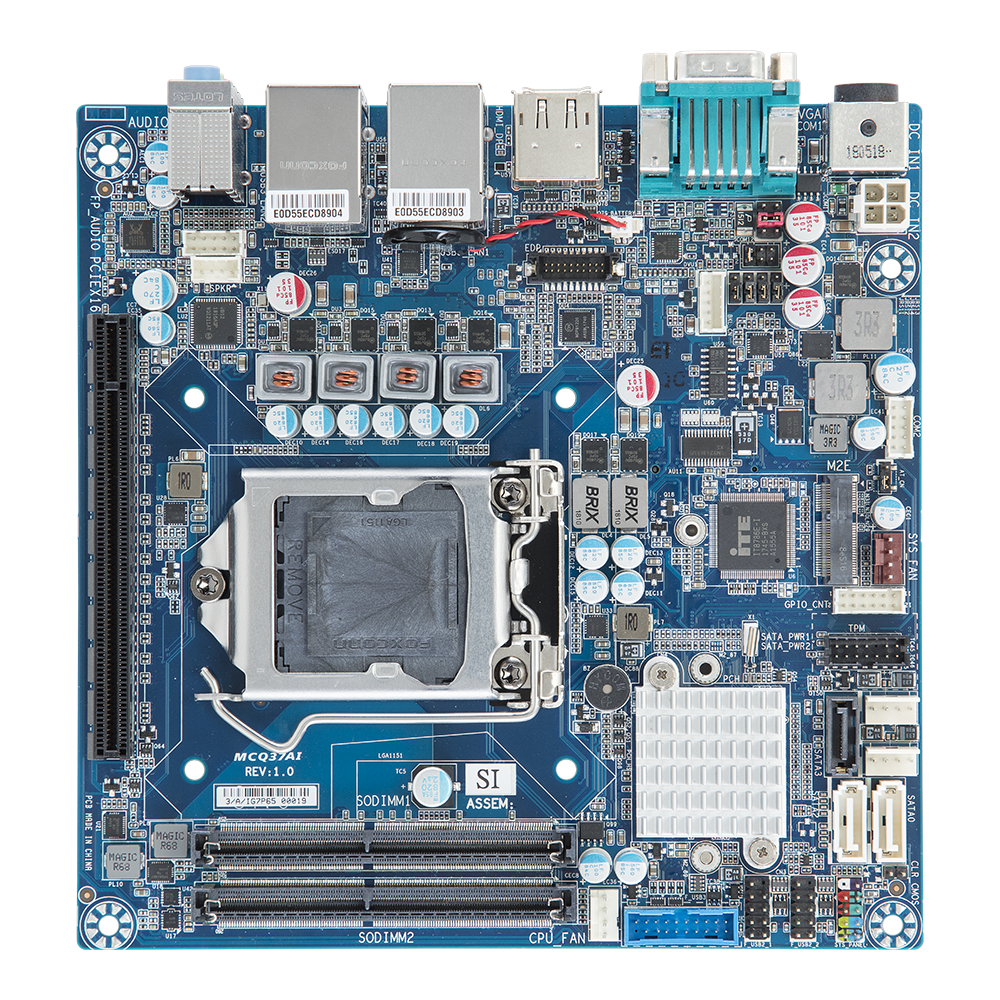

GIGAIPC 산업용 메인보드 Mini ITX mITX-Q370A

기가아이피씨

산업용 메인보드, 미니 임베디드 마더보드

드라이버 & 매뉴얼 다운로드


Key Features

Mini-ITX form factor

Supports 9th/8th Generation Intel® Core™ Processors

Intel® Q370 Express Chipset

Dual Channel DDR4, 2 x SO-DIMMs

2 x GbE LAN ports

3 x SATA 6Gb/s ports

HDMI, Display Port, VGA, eDP ports for multiple display

1 x USB 3.1 Gen2 port with 10Gb/s speed

1 x RS232/422/485/5V/12V/RI COM port

1 x RS232 COM port


Specification

Form Factor Mini-ITX
170W x 170D(mm)
CPU Support for 9/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket 1 x LGA 1151
Chipset Intel® Q370 Express Chipset
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32GB
Support Dual channel DDR4 2666/2400 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® i219LM and Intel® i211AT)
Video Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 1920X1080 @60Hz
(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 3 x SATA 6Gb/s ports (RAID 0/1/5/10)
Expansion Slots 1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (PCIe x4, SATA 6Gb/s, Optane memory)
1 x 2230 M.2 E-Key
Internal I/O 1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x USB 3.0 headers
1 x COM header (RS-232)
1 x GPIO (8-bits) & SMBUS header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer

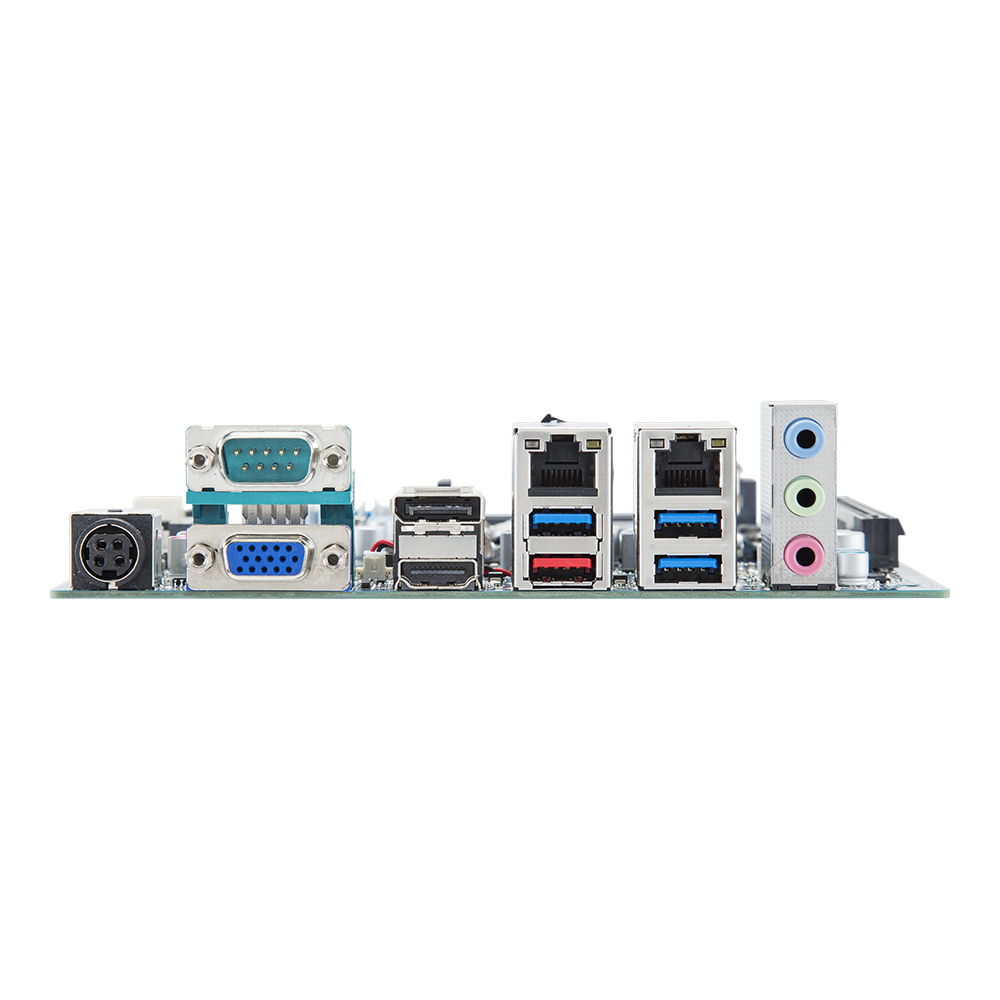

Rear I/O 3 x Audio jacks (Line in, Line out, Mic in)
1 x COM port (RS-232/422/485 and RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN ports
3 x USB 3.0
1 x USB 3.1 Gen2
1 x DC Jack (+12V/+19V/+24VDC)
TPM 1 x TPM Header
OS Compatibility Windows 10 (x64)
Operating Properties Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content Bulk Packing Capacity: 20pcs
Carton size: 550 x 451 x 330(mm)
Content:
IO Shield x 1 (P/N: 12AIO-MCQ370-00R)
SATA Power cable x 2 (P/N: 25CRI-300B01-K1R)
Order information 9MCQ37AINR-SI (Bulk Packing)
Optional kit TPM 2.0 module: 9CTM000NR-00
