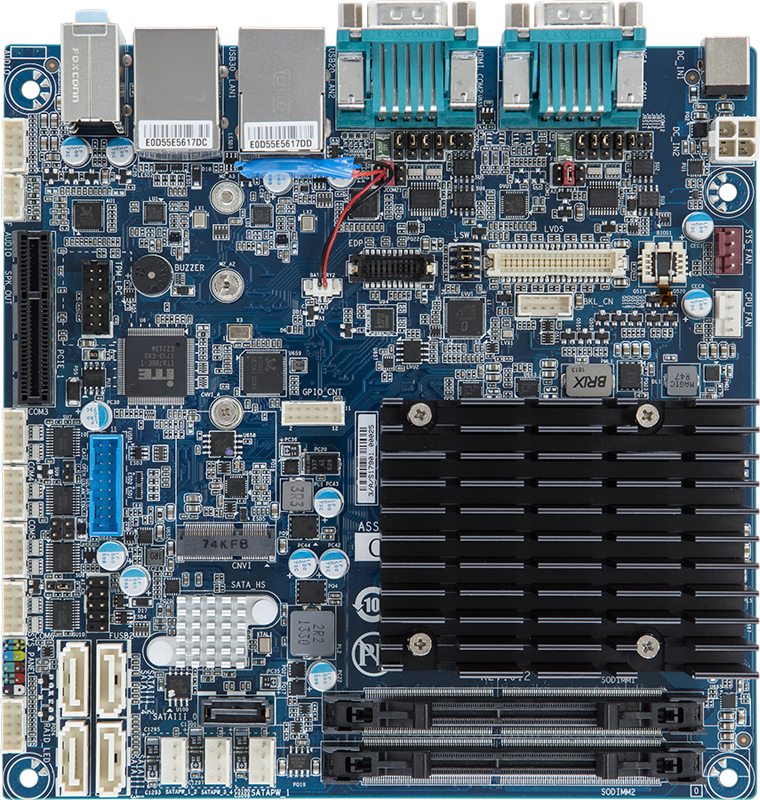

mITX-4125A
Mini-ITX Embedded Motherboard with Intel® J4125 Processor, Dual Channel DDR4 memory, PCIe, 6 x COM, 5 x SATA 6Gb/s, 8 x USB
GIGAIPC 산업용 메인보드 Mini ITX mITX-4125A
기가아이피씨
산업용 메인보드, 미니 임베디드 마더보드
Key Features
Mini-ITX form factor
Intel® Celeron® Processor J4125
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN ports
5 x SATA 6Gb/s ports with one SATA DOM supported
HDMI 2.0a, VGA, eDP (in option), LVDS ports for multiple display
1 x PCIe x4 (Gen2 x 2) expansion slot
2 x RS232/422/485/5V/12V/RI COM ports
4 x RS232 COM ports
Specification
Form Factor | Mini-ITX 170W x 170D(mm) |
CPU | Intel® Celeron® Processor J4125 14nm, 4 cores, 4 threads, up to 2.70 GHz TDP 10W fan-less design |
Socket | 1 x FCBGA 1090 |
Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 8GB Support Dual channel DDR4 2400 MHz memory modules |
Ethernet | 2 x GbE LAN ports (Realtek® RTL8111HS) |
Video | Integrated Graphics Processor - Intel® UHD Graphics 600: 1 x HDMI 2.0 port, supporting a maximum resolution of 3840x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz 1 x eDP port, supporting a maximum resolution of 1920X1080 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz * eDP connector is alternative with LVDS port, only one can be worked at the same time (3 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 5 x SATA 6Gb/s ports (4 x from Marvell 88SE9230, support RAID/0/1/10) (1 x from J4125 supports SATA DOM) |
Expansion Slots | 1 x PCIe x4 (Gen2 x2) 1 x 2280/2260/2242 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (CNVi cards only) |
Internal I/O | 1 x 4-pin ATX main power connector 3 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 2 x USB 2.0 headers 2 x USB 3.0 headers 4 x COM headers (RS-232) 1 x GPIO (8 bits) & SMBUS header 1 x Case open header 1 x AT/ATX mode jumper 1 x Backlight Control header 1 x RAID LED header 2 x LAN LED headers 1 x Clear CMOS jumper 1 x Buzzer |

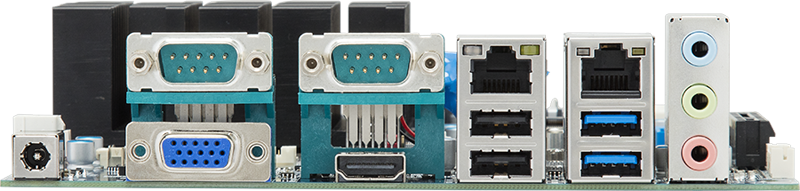

Rear I/O | 3 x Audio jacks (Line in, Line out, Mic in) 2 x COM ports (RS-232/422/485 and RI/5V/12V) 1 x HDMI 1 x VGA 2 x RJ45 LAN ports 1 x USB 2.0 2 x USB 3.0 1 x DC Jack (+12VDC) |
TPM | 1 x TPM header |
OS Compatibility | Windows 10 (x64) |
Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) |
Packing Content | Capacity: 20pcs Carton size: 550 x 451 x 330(mm) Content: IO Shield x 1 (P/N: 12AIO-MGMLJA-00R) SATA power cables x 2 (P/N: 25CRI-300B01-K1R) |
Order information | 9MGMLJAINR-SI (Bulk Packing) |
Optional Kit | TPM 2.0 module: 9CTM000NR-00 |
