QBiX-Pro-AMDA1605H-A1
Industrial system with AMD Ryzen™ V1605B Embedded Processor
GIGAIPC 산업용 임베디드 QBiX-Pro-AMDA1605H-A1
키오스크, 포스, 사이니지, 메디케어, 산업 자동화
기가아이피씨
Key Features
System Size : 178W x 125D x 52.7H(mm)
AMD Ryzen™ V1605B Embedded Processor
Dual Channel DDR4, 2 x SO-DIMMs
4 x HDMI 2.0 for multiple displays
2 x GbE LAN ports
Application
KIOSK / POS
Digital Signage
Menu Board / Video Wall
Medicare
Factory Automation
Specification
QBiX-Pro-AMDA1605H-A1 integrated with GIGAIPC 3.5" SBC QBiP-1605A, is designed for retail and commercial market with AMD Ryzen™ V1605B processor and support quad independent display output with 4 x HDMI 2.0 ports as well as rich I/O interfance of 4 x COM ports (2 x switchable and 2 x RS-232), 2 x USB 3.0 and 2 x USB 2.0, to be connected to various devices for different working environment.
It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan-less thermal solution and therefore reduces the risk of fan failure. QBiX-Pro-AMDA1605H-A1 is ruggedized, stable and reliable for indoor and outdoor environments.
Dimension | 178W x 125D x 52.7H(mm) |
CPU | AMD Ryzen™ V1605B Embedded Processor 14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz TDP 25W 2MB of shared L2 plus 4MB of shared L3 total |
Chipset | SoC |
Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2400MHz memory modules |
Ethernet | 2 x GbE LAN ports (Realtek® RTL8111HS) |

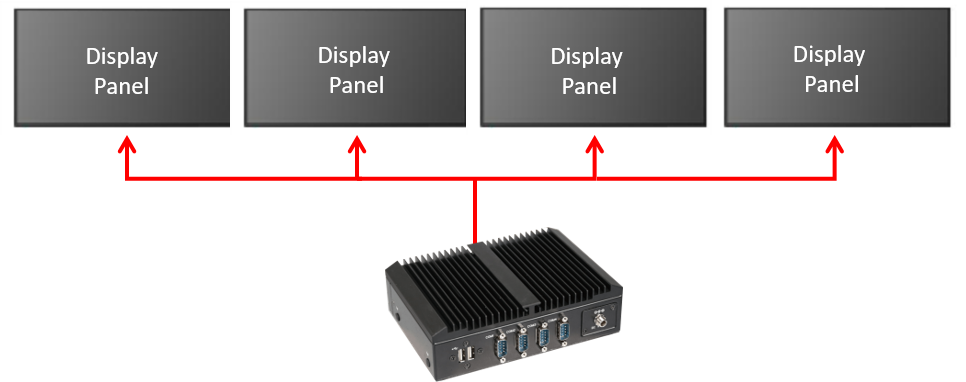

Graphic support | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics: 4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz *Support EDID emulation with AMD graphic driver/utility (4 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 1 x 2.5" HDD/SSD (SATA 6 Gb/s) |
Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |

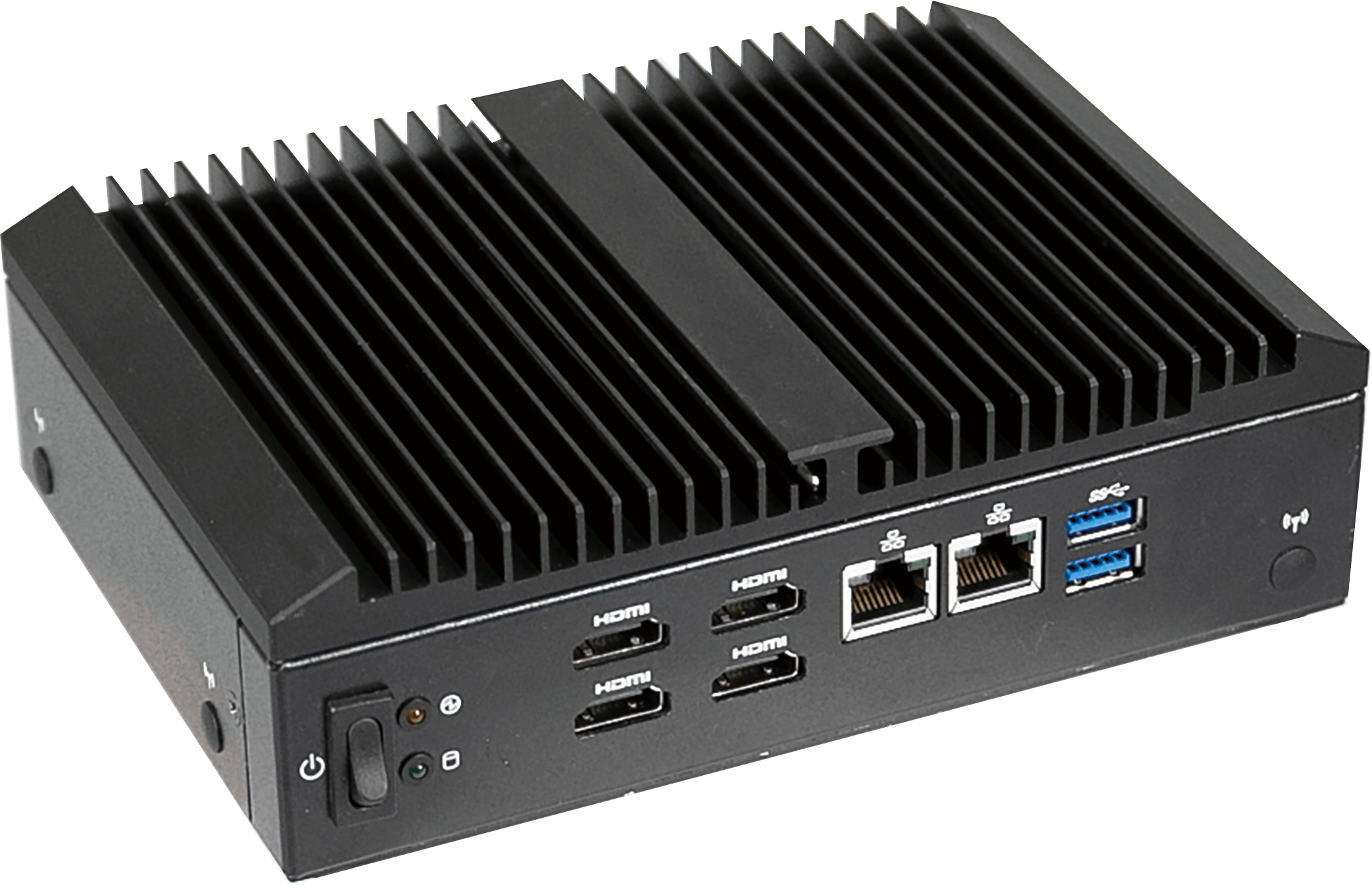

Front I/O | 2 x RJ45 LAN ports 2 x USB 3.0 4 x HDMI 1 x Power switch 1 x Power & HDD LED |

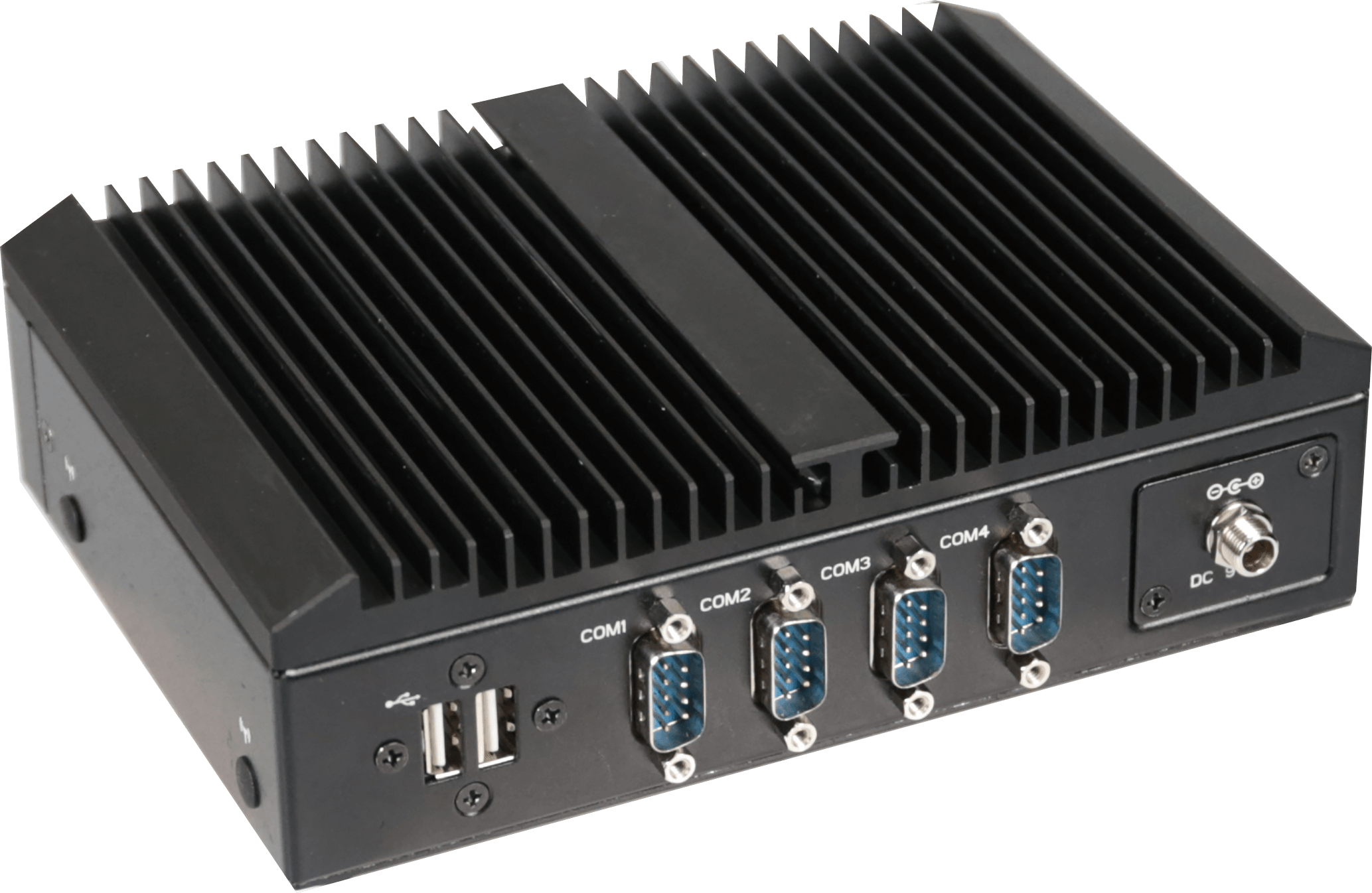

Rear I/O | 2 x USB 2.0 2 x COM ports (RS-422/485/232 and RI/5V/12V) 2 x COM ports (RS-232) 1 x Screw Type DC Jack |
Side I/O | 2 x External Antenna (Optional) |
TPM | Onboard TPM 2.0 security chip INFINEON SLB9665TT2.0 |
Power | +9~36VDC (Full Range) (Adapter 19V/65W) |
Operation temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
Packaging Content | Box Packing Capacity: 5pcs Carton size: 505x333x231(mm) Content: SCREW I HEAD FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) THERMAL PAD x 2 (P/N: 25ST3-200052-T5R) THERMAL PAD x 1 (P/N: 25ST3-200060-T5R) THERMAL PAD x 1 (P/N: 25ST3-200051-T5R) CABLE SATA x 1 (P/N: 25CF4-170020-S9R) POWER CORD 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R) POWER ADAPTER 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S) |
Mounting | Wall mount (Optional) |
Order Information | 6BQP1605AMR-SI (Box packing) |
