GIGAIPC 산업용 임베디드 QBiX-Pro-AMDA1605H-A1

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 5. 13:40

자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

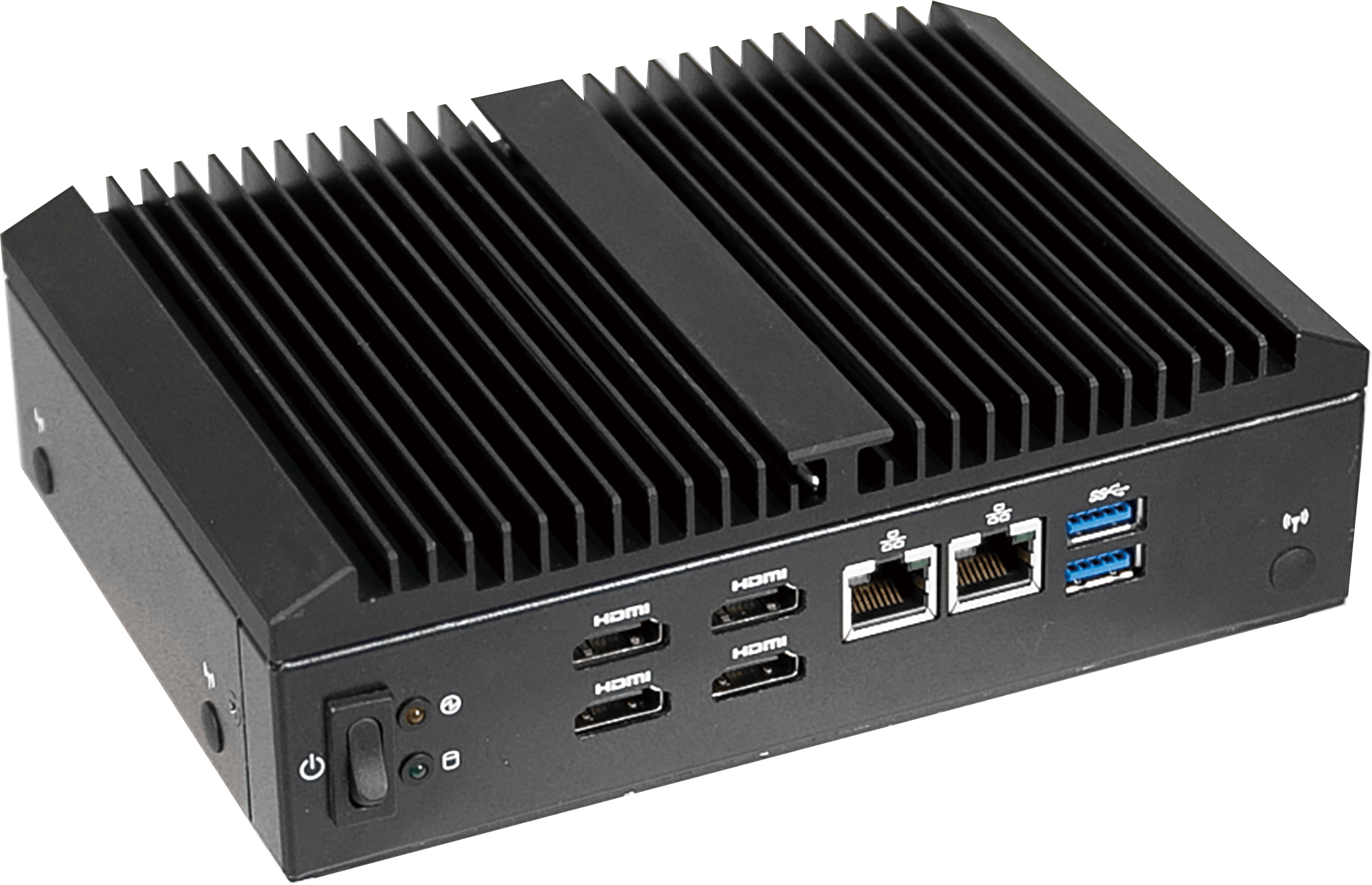

QBiX-Pro-AMDA1605H-A1

Industrial system with AMD Ryzen™ V1605B Embedded Processor

GIGAIPC 산업용 임베디드 QBiX-Pro-AMDA1605H-A1

키오스크, 포스, 사이니지, 메디케어, 산업 자동화

기가아이피씨

드라이버 & 매뉴얼 다운로드


Key Features

System Size : 178W x 125D x 52.7H(mm)

AMD Ryzen™ V1605B Embedded Processor

Dual Channel DDR4, 2 x SO-DIMMs

4 x HDMI 2.0 for multiple displays

2 x GbE LAN ports

Application

KIOSK / POS

Digital Signage

Menu Board / Video Wall

Medicare

Factory Automation


Specification

QBiX-Pro-AMDA1605H-A1 integrated with GIGAIPC 3.5" SBC QBiP-1605A, is designed for retail and commercial market with AMD Ryzen™ V1605B processor and support quad independent display output with 4 x HDMI 2.0 ports as well as rich I/O interfance of 4 x COM ports (2 x switchable and 2 x RS-232), 2 x USB 3.0 and 2 x USB 2.0, to be connected to various devices for different working environment.

It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan-less thermal solution and therefore reduces the risk of fan failure. QBiX-Pro-AMDA1605H-A1 is ruggedized, stable and reliable for indoor and outdoor environments.

Dimension 178W x 125D x 52.7H(mm)
CPU AMD Ryzen™ V1605B Embedded Processor
14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz
TDP 25W
2MB of shared L2 plus 4MB of shared L3 total
Chipset SoC
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400MHz memory modules
Ethernet 2 x GbE LAN ports (Realtek® RTL8111HS)
Graphic support Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
*Support EDID emulation with AMD graphic driver/utility
(4 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x 2.5" HDD/SSD (SATA 6 Gb/s)
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module
Front I/O 2 x RJ45 LAN ports
2 x USB 3.0
4 x HDMI
1 x Power switch
1 x Power & HDD LED
Rear I/O 2 x USB 2.0
2 x COM ports (RS-422/485/232 and RI/5V/12V)
2 x COM ports (RS-232)
1 x Screw Type DC Jack
Side I/O 2 x External Antenna (Optional)
TPM Onboard TPM 2.0 security chip
INFINEON SLB9665TT2.0
Power +9~36VDC (Full Range)
(Adapter 19V/65W)
Operation temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content Box Packing Capacity: 5pcs
Carton size: 505x333x231(mm)
Content:
SCREW I HEAD FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
THERMAL PAD x 2 (P/N: 25ST3-200052-T5R)
THERMAL PAD x 1 (P/N: 25ST3-200060-T5R)
THERMAL PAD x 1 (P/N: 25ST3-200051-T5R)
CABLE SATA x 1 (P/N: 25CF4-170020-S9R)
POWER CORD 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
POWER ADAPTER 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S)
Mounting Wall mount (Optional)
Order Information 6BQP1605AMR-SI (Box packing)
