QBiX-APLA4200H-A1
Industrial system with Intel® Pentium® N4200 Processor
GIGAIPC 산업용 임베디드 QBiX-APLA4200H-A1
산업자동화, 산업용 피씨, 키오스크, 포스, 임베디드, IoT 시스템
기가아이피씨
Key Features
System Size: 118W x 109.4D x 54.4H (mm)
Intel® Pentium® Processor N4200
Single Channel DDR3L, 1 x SO-DIMM
HDMI, VGA
1 x GbE LAN port
Application
Factory Automation
Industrial PC
KIOSK / POS
Embedded & Industrial Applications
IoT System
Specification
QBiX Series of GIGAIPC embedded system is implemented with GIGAIPC QBi (10x10 Motherboards). It's designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory automation, industrial controller system and space-limited applications, with VESA mout 75x75 and 100x100 for options .
QBiX-APLA4200H-A1 is powered by Intel® Pentium® N4200 Processor to provide "low power but high performance" feature. It is designed with full range 12-24V DC power inputs for operating temperature of 0°C~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/ 5~500Hz and shock endurance to 50G/11ms, to meet industrial standard. It's available with rich features of both HDMI & VGA output, 4 x USB 3.0 port to work with different peripherals of devices and M.2 2230 E-Key for expansion.
Dimension | 118W x 109.4D x 54.4H(mm) |
CPU | Intel® Pentium® Processor N4200 14nm, 4 cores, 4 threads, up to 2.5 GHz TDP 6W 2MB L2 cache |
Chipset | SoC |
Memory | 1 x DDR3L SO-DIMM socket, Max. Capacity 8 GB Support Single Channel DDR3L 1866 MHz memory modules |
Ethernet | 1 x GbE LAN port (Realtek® RTL8111HS) |
Graphic support | Integrated Graphics Processor - Intel® HD Graphics 505: 1 x HDMI port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays) (2 independent display outputs) |
Audio | Realtek® Audio Codec |
Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
Expansion Slots | 1 x 2230 M.2 E-Key (WiFi/BT) |

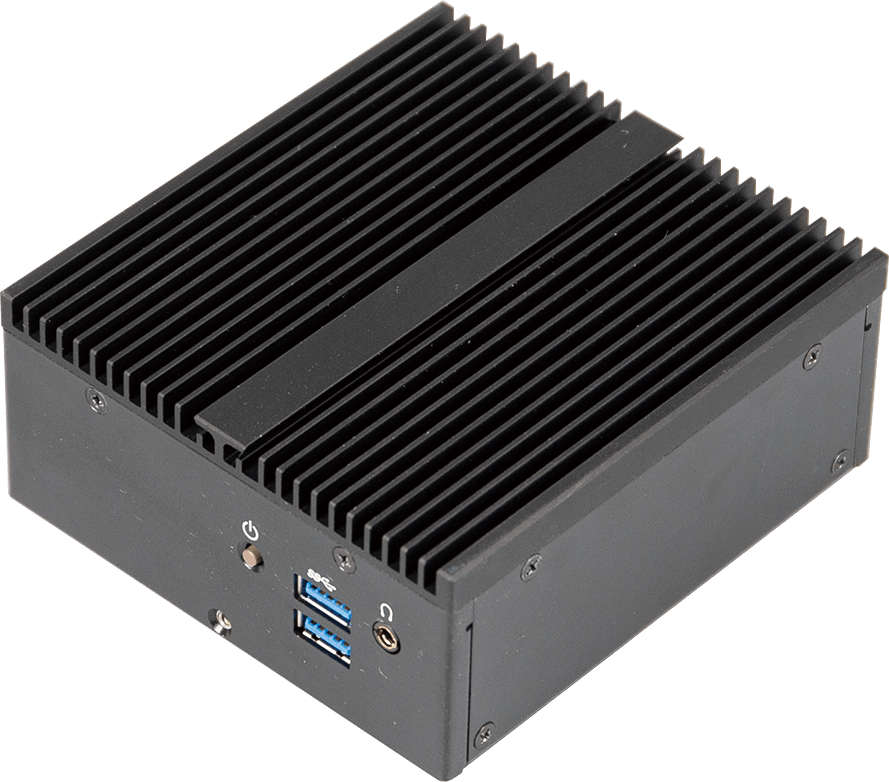

Front I/O | 2 x USB 3.0 1 x Power button with LED 1 x Headphone Jack |

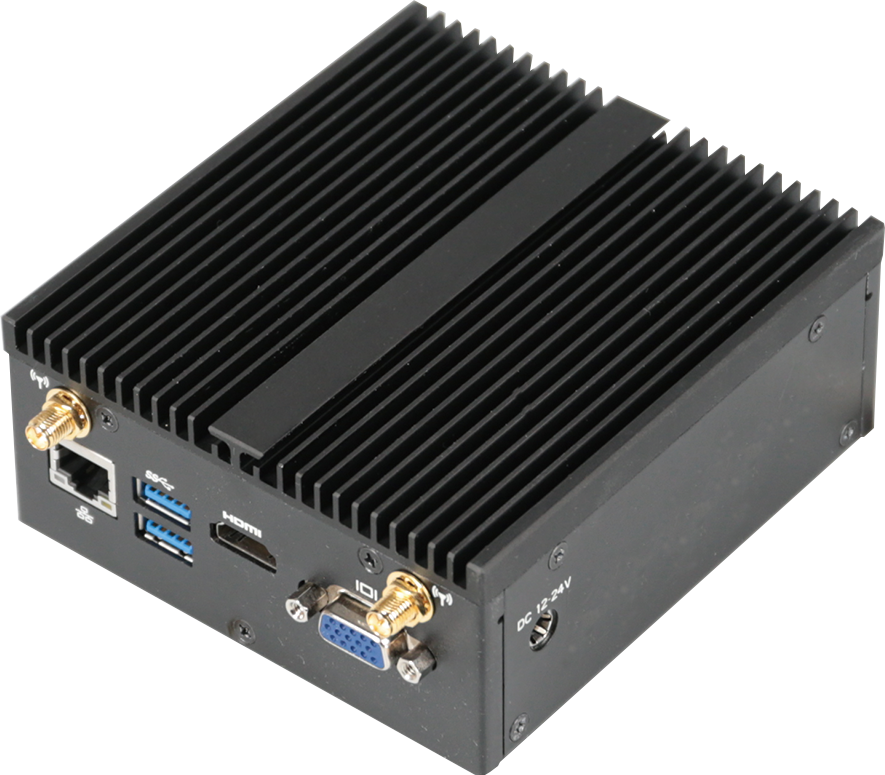

Rear I/O | 1 x RJ45 LAN port 2 x USB 3.0 1 x HDMI 1 x VGA 2 x External Antenna (optional) |
Side I/O | 1 x DC-Jack |
Power | +12~24VDC Full Range (Adapter 19V/65W) |
Operation temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
Packing content | Box Packing Capacity: 6pcs Carton size: 416x409x296(mm) Content: POWER CORD 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065M-F3S) VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R) VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R) SCREW I HEAD FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) THERMAL PAD H48-6T TGLOBAL x 2 (P/N: 25ST3-200047-T5R) CABLE SATA+Power x 1 (P/N: 25CFZ-140000-S9R) |
Order information | 6BCBAAMR-SI (Box packing) |
Optional kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
