GIGAIPC

GIGAIPC 산업용 임베디드 QBiX-Plus-APLA3450-A1

(주)엠이티 M.E.T Co.,Ltd 2021. 8. 3. 17:10



자세한 견적 문의는

TEL : 1670-8257 내선) 441,442

H.P : 010-3039-3013, 010-9831-8257

QBiX-Plus-APLA3450-A1

Industrial system with Intel® Celeron® N3450 Processor

드라이버 & 매뉴얼 다운로드






Key Features

System Size : 165W x 105D x 27H (mm)

Intel® Celeron® Processor N3450

Dual Channel DDR3L, 2 x SO-DIMMs

2 x HDMI for Dual display

2 x GbE LAN port

Application

Healthcare

KIOSK

Menu Board

Digital Signage

IoT System


Specification

The Perfect Fit for IoT Applications

Being an associate member of the Intel IoT Solutions Alliance, GIGAIPC is devoting efforts to present solutions for Internet of Things (IoT) computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions. With leading performance and security, robust build quality and the Input/output (I / O) flexibility, QBiX-Plus-APLA3450-A1 is made a perfect fit for various IoT applications.

Intel® Celeron Processor

Thhe new generationi of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance of graphics and computations. Intel® Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making QBiX-Plus-APLA3450-A1 the ideal solution for thin clients, POS solutions, and digital signage.

Rich in Connectivity Options

QBiX-Plus-APLA3450-A1 ensures you won't be hindered by lack of connections. Having built-in 802.11ac and Bluetooth 4.2 gives users a higher capacity and broader coverage, allowing them to use their devices and accessories wherever they wish, with no compromise on the speed. Gigabit Ethernet can help increase performance between compatible devices on your wired LAN, especially when large file transfers are involved.

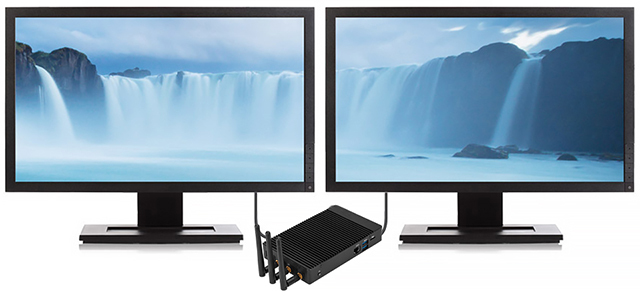

Dual Display

With two HDMI outputs, QBiX-Plus-APLA3450-A1 can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.

VESA Mount Support

Bundled with a VESA bracket, QBiX-Plus-APLA3450-A1 can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

SuperSpeed USB 3.0

Equipped with 4 x USB 3.0 ports, QBiX-Plus-APLA3450-A1 is flexible to adapt to your desired multimedia environment. The SuperSpeed USB 3.0 supports transfer speeds of up to 5 Gb/s and is backward compatible with USB 2.0 and 1.0 for the possibility to connect thousands of devices.

Support RS232 / 422 / 485

QBiX-Plus-APLA3450-A1 is equipped with 1 x RJ45 connector with D-SUB 9-pin adapter cable to support RS-232 / 422 / 485 w/o RI via settings in the BIOS.



Dimension System Size : 165W x 105D x 27H (mm)
CPU Intel® Celeron® N3450 Processor
14nm, 4 cores, 4 threads, up to 2.2 GHz
TDP 6W
2MB L2 cache
Chipset SoC
Memory 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual Channel DDR3L 1866 MHz memory modules
Ethernet 2 x GbE LAN ports (Realtek® RTL8111HS)
Graphic support Integrated Graphics Processor - Intel® HD Graphics 500:
2 x HDMI 1.4 ports, supporting a maximum resolution of 3840x2160 @30Hz
(2 independent display outputs)
Audio Realtek® ALC255
High Definition Audio
Expansion Slots 1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)

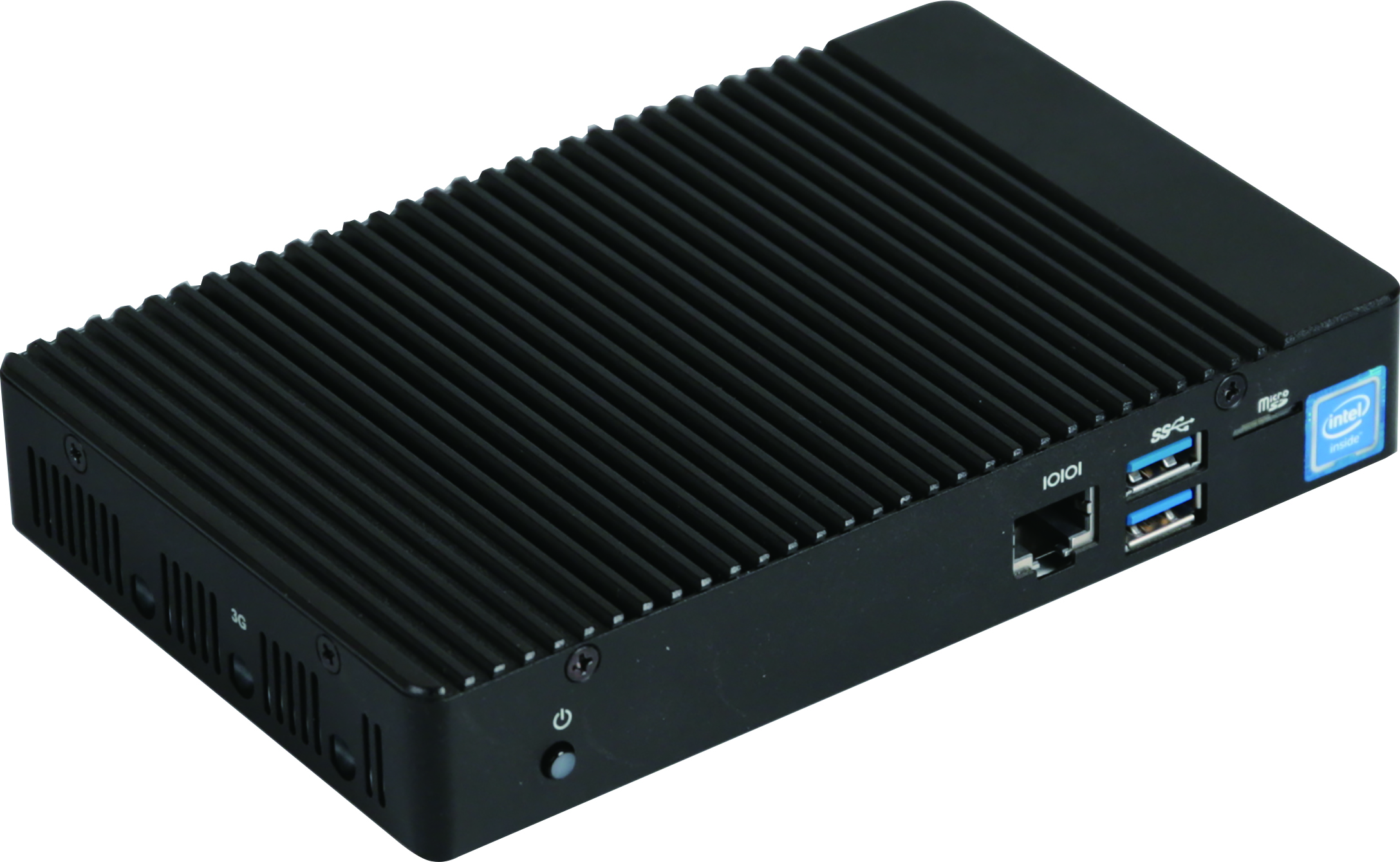

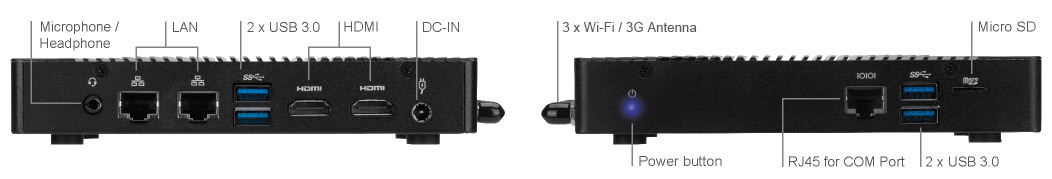

Front I/O 2 x USB 3.0
1 x COM (RS232/422/485)
1 x Micro SD card slot
1 x Power button

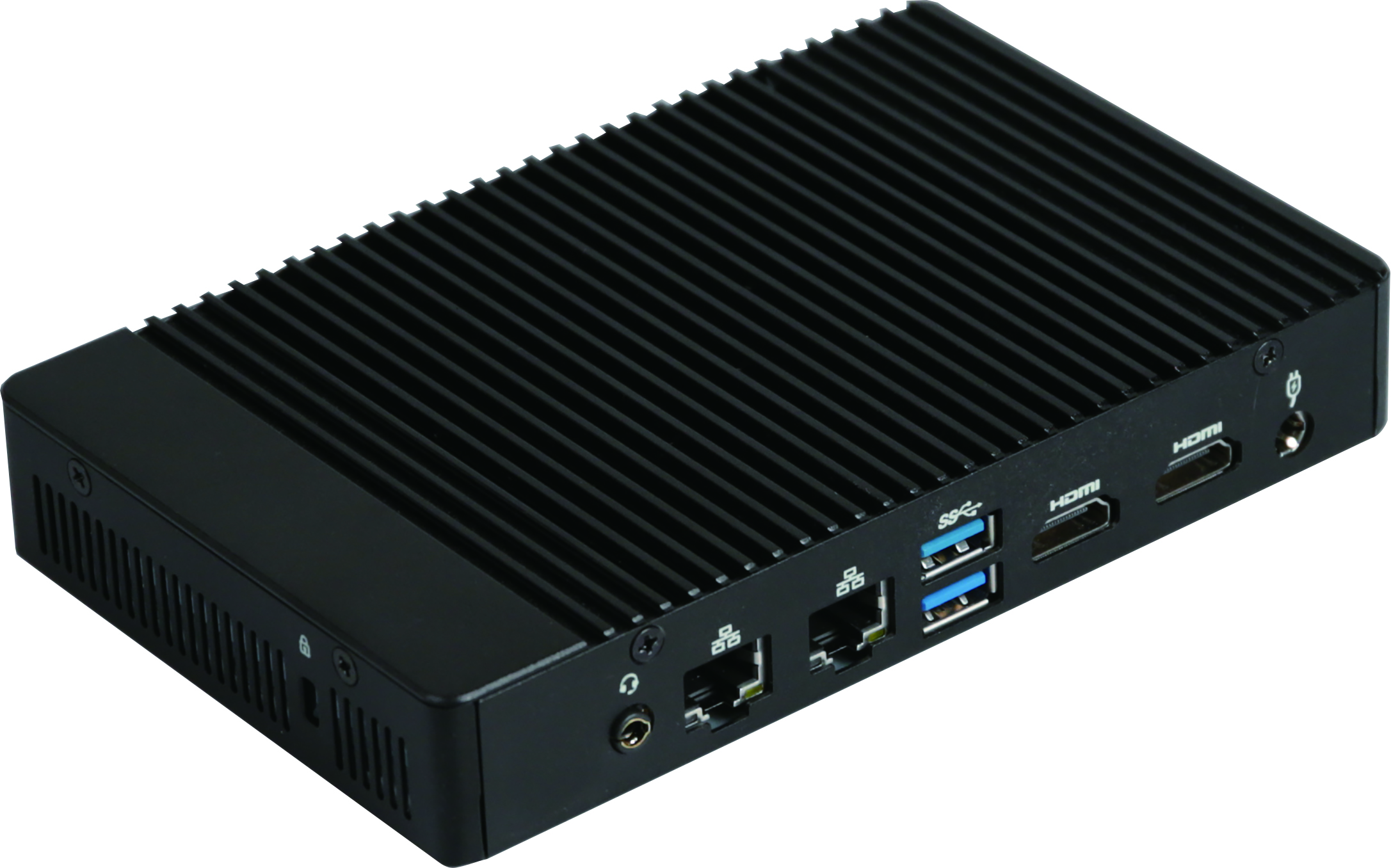

Rear I/O 1 x Combo Audio Jack (Microphone & Headphone)
2 x RJ45 LAN ports
2 x USB 3.0
2 x HDMI
1 x DC Jack
Side I/O 3 x Antenna (optional)
Power +19VDC (Adapter 19V/65W)
Operation temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content Box Packing Capacity: 10pcs
Carton size: 416x359x257(mm)
Content:
POWER CORD 3Gx0.75 H03VV-F SP05/QP038 700mm TW x 1 (P/N: 25CP2-007006-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065K-F3S)
CABLE RJ45 TO D-SUB #24 150mm x 1 (P/N: 25CR0-150400-S9R)
VESA MOUNT BRACKET x 1 (P/N: 25HB2-XM2720-E4S)
Order information System: 9BCBBAZAMR-SI (CTO)
Optional Kit Internal Antenna 200mm : 25CA0-200006-A5S
Internal Antenna 230mm : 25CA0-230001-A5S
Internal Antenna 150mm : 25CA0-150002-A5S
WiFi/BT module : 25FC7-3165N0-10R
Antenna_WiFI x 2 : 25CA0-111000-A5S
Antenna_3G x 1 : 25CA0-111001-A5S
