QBiX-Plus-APLA3450-A1
Industrial system with Intel® Celeron® N3450 Processor
Key Features
System Size : 165W x 105D x 27H (mm)
Intel® Celeron® Processor N3450
Dual Channel DDR3L, 2 x SO-DIMMs
2 x HDMI for Dual display
2 x GbE LAN port
Application
Healthcare
KIOSK
Menu Board
Digital Signage
IoT System
Specification
The Perfect Fit for IoT Applications
Being an associate member of the Intel IoT Solutions Alliance, GIGAIPC is devoting efforts to present solutions for Internet of Things (IoT) computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions. With leading performance and security, robust build quality and the Input/output (I / O) flexibility, QBiX-Plus-APLA3450-A1 is made a perfect fit for various IoT applications.
Intel® Celeron Processor
Thhe new generationi of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance of graphics and computations. Intel® Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making QBiX-Plus-APLA3450-A1 the ideal solution for thin clients, POS solutions, and digital signage.
Rich in Connectivity Options
QBiX-Plus-APLA3450-A1 ensures you won't be hindered by lack of connections. Having built-in 802.11ac and Bluetooth 4.2 gives users a higher capacity and broader coverage, allowing them to use their devices and accessories wherever they wish, with no compromise on the speed. Gigabit Ethernet can help increase performance between compatible devices on your wired LAN, especially when large file transfers are involved.

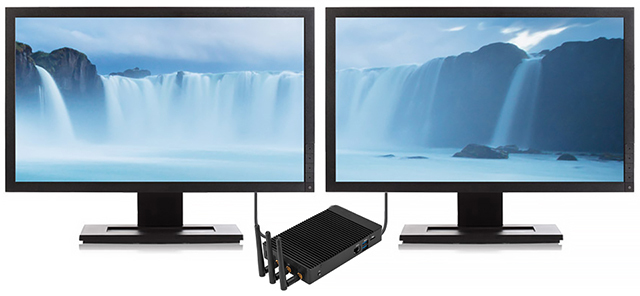

Dual Display
With two HDMI outputs, QBiX-Plus-APLA3450-A1 can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.
VESA Mount Support
Bundled with a VESA bracket, QBiX-Plus-APLA3450-A1 can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
SuperSpeed USB 3.0
Equipped with 4 x USB 3.0 ports, QBiX-Plus-APLA3450-A1 is flexible to adapt to your desired multimedia environment. The SuperSpeed USB 3.0 supports transfer speeds of up to 5 Gb/s and is backward compatible with USB 2.0 and 1.0 for the possibility to connect thousands of devices.
Support RS232 / 422 / 485
QBiX-Plus-APLA3450-A1 is equipped with 1 x RJ45 connector with D-SUB 9-pin adapter cable to support RS-232 / 422 / 485 w/o RI via settings in the BIOS.
Dimension | System Size : 165W x 105D x 27H (mm) |
CPU | Intel® Celeron® N3450 Processor 14nm, 4 cores, 4 threads, up to 2.2 GHz TDP 6W 2MB L2 cache |
Chipset | SoC |
Memory | 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Dual Channel DDR3L 1866 MHz memory modules |
Ethernet | 2 x GbE LAN ports (Realtek® RTL8111HS) |
Graphic support | Integrated Graphics Processor - Intel® HD Graphics 500: 2 x HDMI 1.4 ports, supporting a maximum resolution of 3840x2160 @30Hz (2 independent display outputs) |
Audio | Realtek® ALC255 High Definition Audio |
Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) |

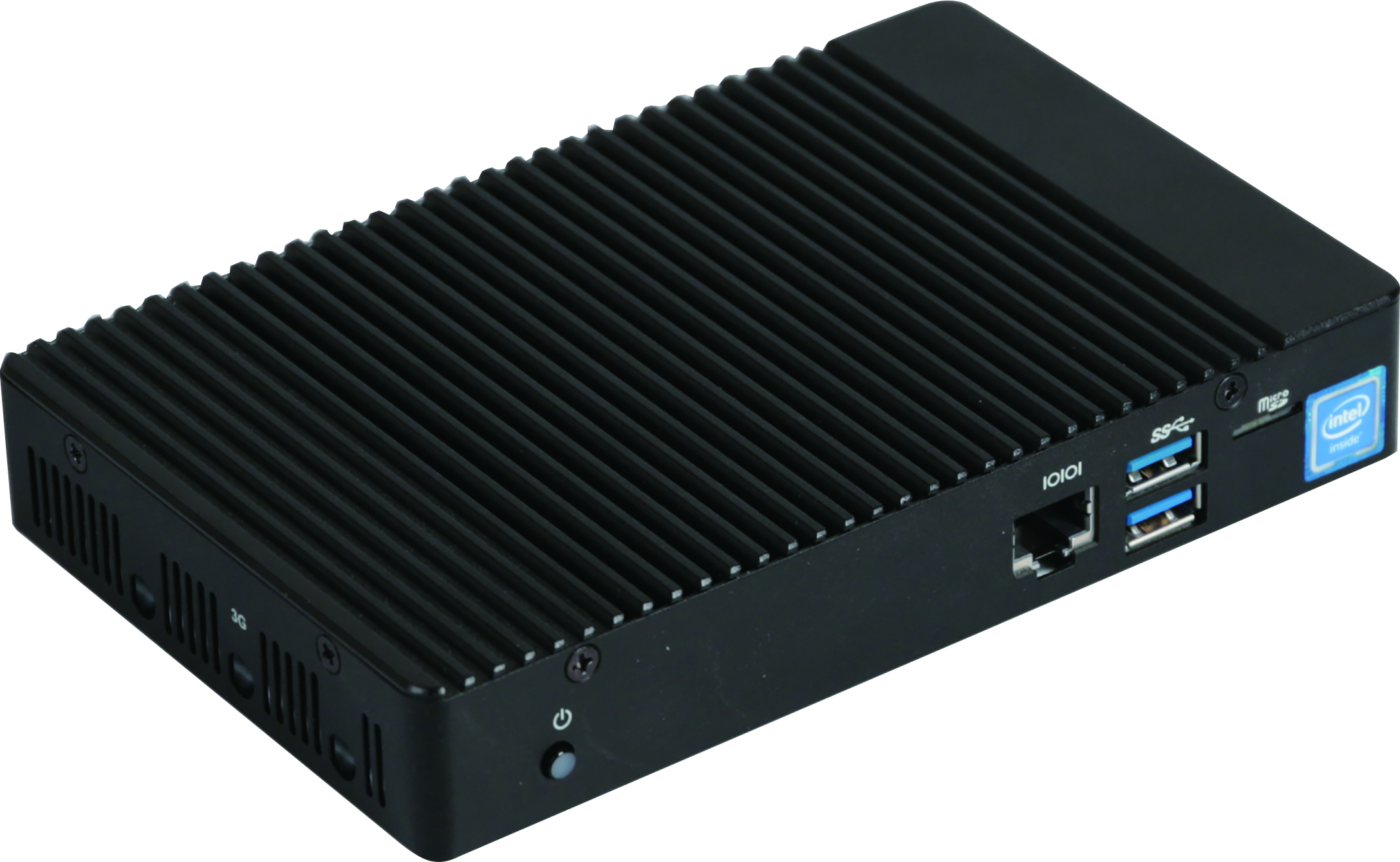

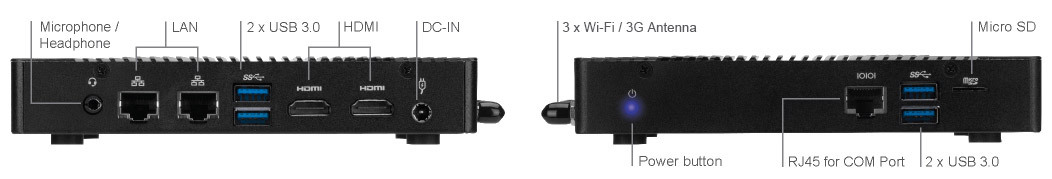

Front I/O | 2 x USB 3.0 1 x COM (RS232/422/485) 1 x Micro SD card slot 1 x Power button |

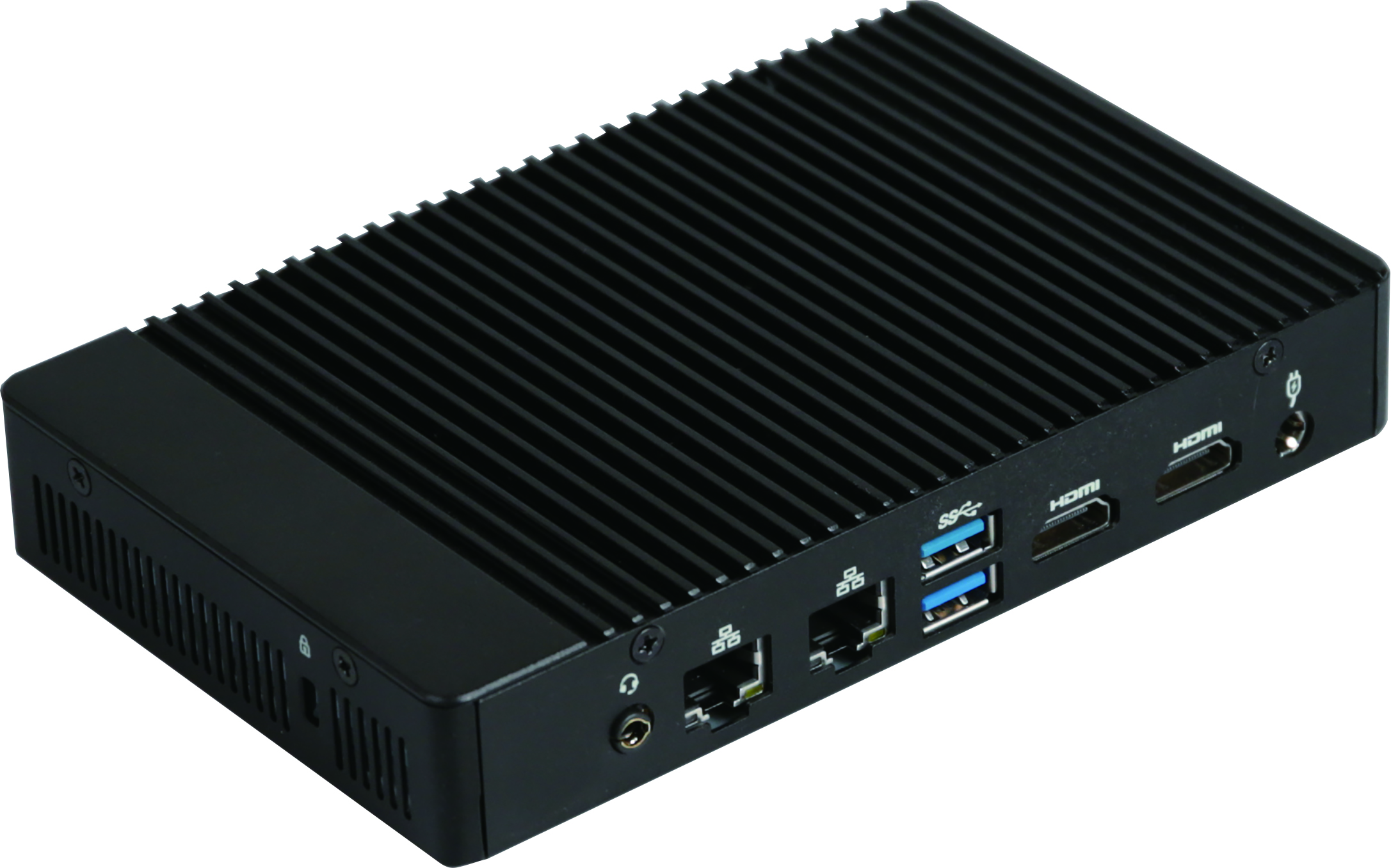

Rear I/O | 1 x Combo Audio Jack (Microphone & Headphone) 2 x RJ45 LAN ports 2 x USB 3.0 2 x HDMI 1 x DC Jack |
Side I/O | 3 x Antenna (optional) |
Power | +19VDC (Adapter 19V/65W) |
Operation temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
Packing Content | Box Packing Capacity: 10pcs Carton size: 416x359x257(mm) Content: POWER CORD 3Gx0.75 H03VV-F SP05/QP038 700mm TW x 1 (P/N: 25CP2-007006-Q0R) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065K-F3S) CABLE RJ45 TO D-SUB #24 150mm x 1 (P/N: 25CR0-150400-S9R) VESA MOUNT BRACKET x 1 (P/N: 25HB2-XM2720-E4S) |
Order information | System: 9BCBBAZAMR-SI (CTO) |
Optional Kit | Internal Antenna 200mm : 25CA0-200006-A5S Internal Antenna 230mm : 25CA0-230001-A5S Internal Antenna 150mm : 25CA0-150002-A5S WiFi/BT module : 25FC7-3165N0-10R Antenna_WiFI x 2 : 25CA0-111000-A5S Antenna_3G x 1 : 25CA0-111001-A5S |
